QNAP TS-431K
High-performance quad-core NAS for reliable home and personal cloud storage

TS-431K

QNAP Products

Home & SOHO

QNAP 4-Bay Personal Cloud NAS for Backup and Data Sharing. Annapurna Labs 4-core 1.7GHz, 1GB RAM, with lockable drive tray.
Annapurna Labs AL214 4-core 1.7GHz, 1GB RAM, SATA 6Gb/s, 2x GbE LAN, 3 x USB3.0, HDD hot-swappable

#TS-431K
המחיר שלנו: ₪1,554.00

סקירה:

Powered by quad-core 1.7 GHz processor, the TS-431K provides 4 drive bays storage space to securely store your important files and data, while allowing you to easily share files with family and friends. Featuring a compact pure white minimalist design, the TS-431K can easily integrate with any home décor and takes up very little space. The TS-431K comes with lockable drive trays, ensuring the drives will not be accidentally removed or fall out and cause data loss. The TS-431K provides comprehensive local, off-site and cloud backup and secure Snapshot technology to help create a reliable backup and disaster recovery plan. In the event of a system crash or accidental file deletion, you can quickly restore the system to its normal state.

Available Models

TS-431K-
Annapurna Labs AL-214 quad-core 1.7 GHz processor, 1GB RAM, 2 x GbE ports

File Station icon

File Station enables centralized file management on the NAS, connected devices, and connected clouds, making data management more easily, while saving time.

HBS icon

HBS (Hybrid Backup Sync) can backup and sync your data to other NAS, servers and cloud storage for comprehensive backup and disaster recovery.

Snapshots icon

Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

multimedia applications icon

Rich multimedia applications and a wide range of streaming methods, bringing greater multimedia enjoyment.

USB icon

Connect to external USB devices such as card readers, printers or uninterruptable power supply through the USB 3.2 Gen 1 port for greater application potential.

myQNAPcloud icon

myQNAPcloud service allows you to easily access, manage, and share NAS files via the Internet.

מאפייני המערכת:

Quad-core CPU drives higher performance

The TS-431K is powered by a quad-core 1.7 GHz CPU that features more CPU cores to enhance system performance. With 1 GB RAM, two Gigabit LAN ports, and SATA 6 Gb/s drives, the TS-431K delivers high performance, while also maintaining data security. The TS-431K also features three USB 3.2 Gen 1 ports, allowing you to transfer large media files between the NAS and your devices. The USB port on the front panel supports one touch copy, making it convenient for you to backup data on your external device to a NAS or vice versa with just one click.

Easily Create a High-speed Network Environment

You can use QNAP USB 3.2 Gen 1 on 5GbE adapters (QNA-UC5G1T) with the TS-431K or your computer. By connecting the NAS and PC through the 5GbE adapters, you can create a 5GbE network connectivity for nearly 300 MB/s transfer speed.

10GbE-switch-ts-431k

Boost productivity with QNAP applications

QNAP File Station provides centralized file management, allowing you to view and manage files on your TS-431K and other storage sources or external devices, which allows you to easily share files with family and friends through email, social media, or share link. You can also use Qfile mobile app to access NAS files from a mobile device.

File Station

File Station allows you manage files stored on your QNAP NAS in your cloud space, or from USB card reader and mobile devices. You can easily access all your data from a single application.

Qfile

Qfile mobile app allows you to access NAS files from a mobile device anytime anywhere, while uploading and backing up files on your phone to a NAS.

Protects your sensitive data with file encryption

When sharing sensitive or confidential files on your TS-431K, you can enhance data security with File Station by encrypting files into .qenc files and set a password. The file recipients need to download and install QENC Decrypter on their computers and enter the correct password to decrypt, view, and use encrypted .qenc files.

Note: The computer must run on Windows 8 (or later) or macOS 10.12 (or later).

Protect data against malware with Snapshots

Snapshots help protect your data by fully recording the NAS system status and metadata. If a file is accidentally deleted or modified, you can use snapshots from the Storage & Snapshots Manager or the File Station to quickly restore files to its previously-recorded state. QNAP snapshots are block-based and only record changed data. Not only does this save storage space, but it also reduces time required to back up and restore data. The TS-431K supports up to 16 snapshots per volume/LUN, and up to 32 snapshots in total.

Multi-point file backup, access, and sync

HBS (Hybrid Backup Sync) consolidates data backup, recovery, and synchronization, allowing you to easily backup or sync data to another QNAP NAS, and remote server or cloud storage (e.g. Dropbox® or Google® Drive) to build a reliable disaster recovery solution. Qsync turns the TS-431K into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-431K will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.

HBS

Greater multimedia enjoyment

The TS-431K comes with a wide range of media applications, including Photo Station, Video Station and Music Station, allowing you to easily manage and view your media files. You can also download Plex Media Server to turn your TS-431K into a multimedia server.

Photo Station

Photo Station

מאפייני המערכת intuitive interface for you to arrange your photos by drag and drop. You can set access permission and can easily share photos to social media. By installing Qfile or Qphoto mobile apps on your mobile device, you can quickly upload your phone photos to TS-431K.

Video Station

Video Station

A management tool for you to easily manage the videos on the TS-431K according to different categories from a single interface. You can stream videos through DLNA®, Apple TV (via Qmedia) and Chromecast™* to different devices.

To stream videos via Chromecast, download and install the multimedia extension pack app from the QTS App Center.

Music Station

Music Station

Allows you to organize all your song collections by category, and automatically retrieves album covers, making it easy for you to customize playlists and play songs anytime and anywhere from the web-based interface. Music Station also provides Internet radio service for you to listen to any global Internet radio program.

Plex Media Server

Plex Media Server

Install Plex Media Server on the TS-431K and stream media files on your NAS to Roku®, Apple TV (via Qmedia), Google Chromecast™, Amazon Fire TV® for you to enjoy files on your mobile phones, tablets, DLNA® devices or on a TV.

Windows/ Mac computer file backup

QNAP NAS provides a simple solution for backing up/restoring laptops and desktops. You can use QNAP NetBak Replicator to backup files on Windows® computers, including Outlook® Email archive. The NAS also supports Time Machine® on Mac® devices, enabling easy, fast, and convenient data backup.

Extend hardware warranty up to 5 years

The TS-431K is backed by a 2-year warranty at no extra cost. You can purchase a warranty extension to extend your warranty coverage up to five years.

Comprehensive surveillance solution for 24/7 security

Surveillance Station features a user-friendly interface, supports over 3,000 compatible IP cameras, and provides expandable IP camera channel licenses, allowing you to build a comprehensive surveillance system for real-time monitoring, video and audio recording and playback. You can use the Vmobile app on your mobile devices to manage the monitored channels anytime and anywhere. You can also use QUSBCam2 App to add USB cameras into the Surveillance Station to view real-time images, store recordings for playback, allowing you to build a surveillance system on minimum budget.

Flexible and economical storage expansion

QNAP provides easy storage capacity expansion solutions. Here are several ways to expand your TS-431K storage as needed to accommodate data and business growth:

Upgrade RAID Capacity

Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your QNAP NAS capacity so it can grow with your business.

Attach Expansion Enclosures

Attach Expansion Enclosures*
Connect two RAID expansion enclosures (TR-004 or TR-002) or one USB 3.2 Gen 2 JBOD (TL-D800C) and use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.

*The expansion enclosure can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS.

Migrate to a New NAS

Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

חומרה Specifications:

	TS-431K
CPU	AnnapurnaLabs, an Amazon company Alpine AL-214, 4-core, 1.7GHz
CPU Architecture	32-bit ARM
Floating Point Unit
Encryption Engine
System Memory	1GB DDR3
Maximum Memory	1GB DDR3
Flash Memory	512 MB (Dual boot OS protection)
Drive Bay	4x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives

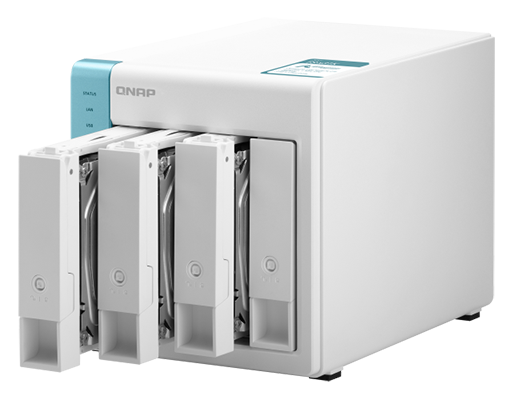

Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45)	2
Jumbo Frame
USB 3.2 Gen 1 port	3
Form Factor	Tower
LED Indicators	Power, Status, LAN, USB, HDD1-4
Buttons	Power, Reset, USB Auto Copy
Dimensions (HxWxD)	6.34 × 6.3 × 8.62 inch
Weight (Net)	6.61 lbs
Weight (Gross)	9.48 lbs
Operating temperature	0 - 40 °C (32°F - 104°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	90W Adapter, 100-240V
Power Consumption: HDD Sleep Mode	11.928 W
Power Consumption: Operating Mode, Typical	26.57 W With drives fully populated
Fan	1 x 120mm, 12VDC
Sound Level	21.3 db(A)
System Warning	Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS)	400

TS-431K

CPU

AnnapurnaLabs, an Amazon company Alpine AL-214, 4-core, 1.7GHz

CPU Architecture

32-bit ARM

Floating Point Unit

Encryption Engine

System Memory

1GB DDR3

Maximum Memory

1GB DDR3

Flash Memory

512 MB (Dual boot OS protection)

Drive Bay

4x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable

SSD Cache Acceleration Support

Gigabit Ethernet Port (RJ45)

Jumbo Frame

USB 3.2 Gen 1 port

Form Factor

Tower

LED Indicators

Power, Status, LAN, USB, HDD1-4

Buttons

Power, Reset, USB Auto Copy

Dimensions (HxWxD)

6.34 × 6.3 × 8.62 inch

Weight (Net)

6.61 lbs

Weight (Gross)

9.48 lbs

Operating temperature

0 - 40 °C (32°F - 104°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

90W Adapter, 100-240V

Power Consumption: HDD Sleep Mode

11.928 W

Power Consumption: Operating Mode, Typical

26.57 W
With drives fully populated

Fan

1 x 120mm, 12VDC

Sound Level

21.3 db(A)

System Warning

Buzzer

Kensington Security Slot

Max. Number of Concurrent Connections (CIFS)

400

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

מוצרים נלווים:

FAN-12CM-T01

120x120x25mm fan, 12V, 4PIN
Dimension (L × W × H): 120.00 × 120.00 × 25.00 (cm)

QDA-A2AR

Dual 2.5" SATA to 3.5" SATA adapter with RAID support

QDA-A2MAR

Dual M.2 SATA SSD to 2.5" SATA adapter with RAID support

Note: Computer SATA ports that do not support 12V (+12V_SATA) are not compatible with the QDA-A2MAR. Please consult your computer vendor for the SATA port voltage output before purchasing the QDA-A2MAR.
