QNAP TES-1885U
Dual OS options system for versatility and mission-critical applications
אינו נמכר יותר. רישיונות ושירותים נוספים זמינים לרכישה על סמך המידע המופיע מטה TES-1885U
SAS 12G, SAS/SATA 6G, Xeon D-1521 2.4GHz, 16GB ECC RAM, 4-LAN, built-in 2x10Gb SFP+, 40GbE-ready
המחיר שלנו: הצעת מחיר
SAS 12G, SAS/SATA 6G, Xeon D-1521 2.4GHz, 32GB ECC RAM, 4-LAN, built-in 2x10Gb SFP+, 40GbE-ready
המחיר שלנו: הצעת מחיר
Intel Xeon D-1531 6-core 2.2GHz, 128GB ECC RAM, Front: 3.5"/ 2.5” x 12 (SAS 12Gb/s, SAS 6Gb/s, SATA 6Gb/s HDD and SSD), Rear: 2.5" x 6 (SATA 6Gb/s SSD), max 128GB RAM, max 12-LAN, PCIe expansion slot x4, redundant power supply
המחיר שלנו: הצעת מחיר
Intel Xeon D-1531 6-core 2.2GHz, 64GB RAM, Front: 3.5"/ 2.5” x 12 (SAS 12Gb/s, SAS 6Gb/s, SATA 6Gb/s HDD and SSD), Rear: 2.5" x 6 (SATA 6Gb/s SSD), max 128GB RAM, max 12-LAN, PCIe expansion slot x4, redundant power supply
המחיר שלנו: הצעת מחיר
Intel Xeon D-1531 6-core 2.2GHz, 32GB ECC RAM, Front: 3.5"/ 2.5” x 12 (SAS 12Gb/s, SAS 6Gb/s, SATA 6Gb/s HDD and SSD), Rear: 2.5" x 6 (SATA 6Gb/s SSD), max 128GB RAM, max 12-LAN, PCIe expansion slot x4, redundant power supply
המחיר שלנו: הצעת מחיר
Intel Xeon D-1531 6-core 2.2GHz, 32GB RAM, Front: 3.5"/ 2.5” x 12 (SAS 12Gb/s, SAS 6Gb/s, SATA 6Gb/s HDD and SSD), Rear: 2.5" x 6 (SATA 6Gb/s SSD), max 128GB RAM, max 12-LAN, PCIe expansion slot x4, redundant power supply
המחיר שלנו: הצעת מחיר
Intel Xeon D-1531 6-core 2.2GHz, 16GB ECC RAM, Front: 3.5"/ 2.5” x 12 (SAS 12Gb/s, SAS 6Gb/s, SATA 6Gb/s HDD and SSD), Rear: 2.5" x 6 (SATA 6Gb/s SSD), max 128GB RAM, max 12-LAN, PCIe expansion slot x4, redundant power supply
המחיר שלנו: הצעת מחיר
מחירים נוספים מופיעים למטה, או לחצו כאן!
שימו לב: כל המחירים באתר כוללים מע"מ. החיוב יבוצע על פי שער "העברות והמחאות מכירה" של המטבע (דולר אמריקאי) ביום אישור ההזמנה.
Overview:
Powered by an Intel® Xeon® D processor, the powerful enterprise-class TES-1885U is open for two operating systems – either the FreeBSD-based QES or Linux-based QTS. While QES supports ZFS for the utmost reliability and allows near-limitless snapshots, block-level data deduplication and real-time data compression, QTS features Qtier Technology, SSD cache, and an abundance of value-added apps to realize storage efficiency and diverse usage applications. The TES-1885U gives the flexibility to choose from two operating systems, enabling businesses to deploy proper operating systems on multiple TES-1885U based on their needs and goals in different stages.
Note: To change the NAS operating system after completing setup, it is necessary to re-initialize the hard disks and delete all stored data.
A remote backup is required before switching the NAS operating system.
Intel® Xeon® D processor optimizes performance and efficiency
Powered by an advanced 14nm Intel® Xeon® D 64-bit SoC processor with an integrated PCH, up to 128GB DDR4 ECC RDIMM RAM / 64GB DDR4 non-ECC UDIMM RAM, and with two built-in 10GbE SFP+ ports, the 12Gb/s SAS-enabled TES-1885U delivers outstanding performance for data transmission and applications. With a thermal design power of only 20-65W, the TES-1885U fulfills demands for both performance and energy saving.
Specifications:
TES-1885U Specifications | |
---|---|
Ordering P/N | TES-1885U-D1521-16GR TES-1885U-D1521-32GR TES-1885U-D1531-32G TES-1885U-D1531-64G TES-1885U-D1531-16GR TES-1885U-D1531-32GR TES-1885U-D1531-128GR |
CPU | TES-1885U-D1521-16GR / TES-1885U-D1521-32GR: TES-1885U-D1531-32G / TES-1885U-D1531-64G / TES-1885U-D1531-16GR / TES-1885U-D1531-32GR / TES-1885U-D1531-128GR: |
System memory | Total DIMM slots: 4 Maximum memory: DDR4 128 GB ( 32 GB RDIMM x 4 ) Memory modules pre-installed: TES-1885U-D1521-16GR: 16 GB ECC RAM ( 8 GB RDIMM x 2 ) TES-1885U-D1521-32GR: 32 GB ECC RAM ( 8 GB RDIMM x 4 ) TES-1885U-D1531-32G: 32 GB non-ECC RAM ( 16 GB UDIMM x 2 ) TES-1885U-D1531-64G: 64 GB non-ECC RAM (16 GB UDIMM x 4 ) TES-1885U-D1531-16GR: 16 GB ECC RAM ( 8 GB RDIMM x 2 ) TES-1885U-D1531-32GR: 32 GB ECC RAM ( 8 GB RDIMM x 4 ) TES-1885U-D1531-128GR: 128 GB ECC RAM ( 32 GB RDIMM x 4 )Note: TES-1885U requires at least 32GB RAM for running QES operating system. |
Flash Memory | 4 GB DOM |
Hard Drive Tray | Front: 2.5"x 12 Rear: 2.5" SSD slot x 6 |
Supported Hard Drive | Front: SAS 12Gb/s, SAS 6Gb/s, SATA 6Gb/s HDD and SSD Rear: SATA 6Gb/s SSD |
LAN Port | 2 x SFP+ 10GbE ports, 4 x Gigabit ports |
LED Indicators | 10 GbE, Status, LAN, Storage expansion port status |
Buttons | System: Power button and reset button |
Form Factor | 2U, Rackmount |
Dimensions (H x W x D) | 88 x 442.5 x 530.5 mm 3.46 x 17.42 x 20.89 inch |
Weight | Net weight (NAS only): 15.1 kg / 32.28 lb Gross weight (with packing and accessories): 21.41 kg / 47.20 lb |
Temperature | 0-40˚C |
Relative Humidity | 5~95% non-condensing, wet bulb: 27˚C. |
Power Supply | Redundant power: Input 90~264VAC; 450W x 2 |
PCIe Slot | Number: 4 Slot 1: PCIe Gen.3 x8 Slot 2: PCIe Gen.2 x4 Slot 3: PCIe Gen.3 x4 Slot 4: PCIe Gen.3 x4 or PCIe Gen.3 x8 Note: Slot 4 provides the width of PCIe Gen.3 x8 when slot 3 is not in use. Slot 4 then provides the width of PCIe Gen.3 x4 only when an expansion board is installed in slot 3. |
Fan | 4 x 6 cm smart cooling fan |
Designs and specifications are subject to change without notice.
Product Views:

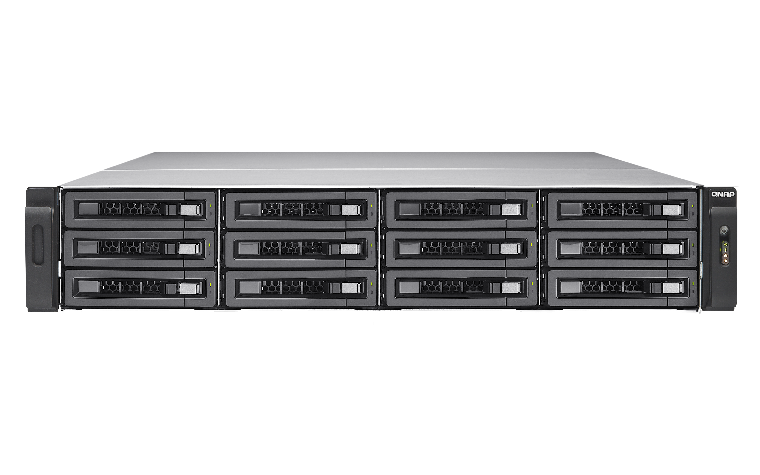

Front View |
Left View |

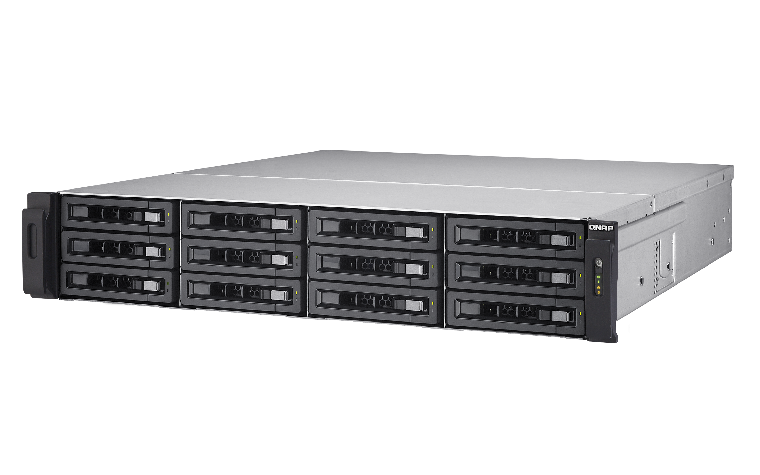

Right View |

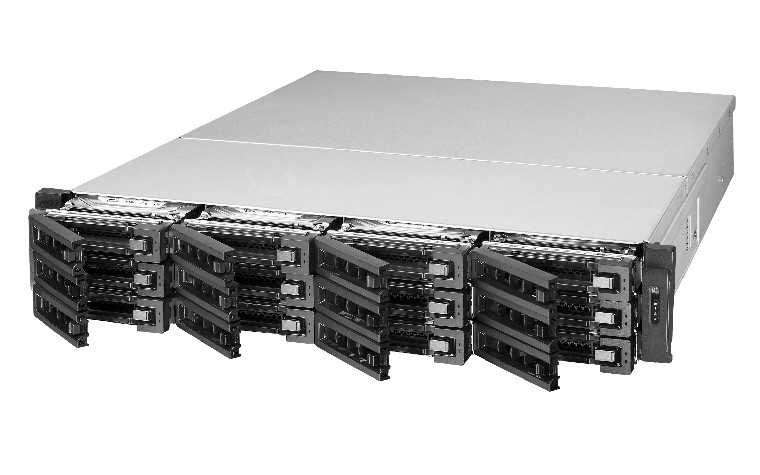

Open View |

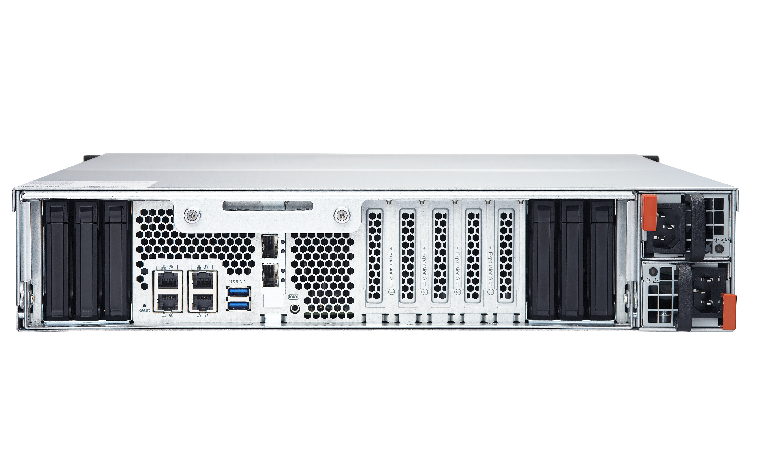

Back View |
Documentation:
Download the QNAP TES-x85U Series Datasheet (PDF).
