QNAP TS-231P3
Quad-core 1.7GHz NAS with 2.5GbE and Feature-rich Applications for Home & Office
Annapurna Labs AL314 Quad core 1.7GHz, 4GB DDR3L SODIMM RAM (max 8GB), SATA 6Gb/s, 1 x 2.5GbE + 1 x GbE LAN, 3 x USB 3.2 Gen1 ports, HDD hot-swappable with lockable trays and keys
המחיר שלנו: הצעת מחיר
Annapurna Labs AL314 Quad core 1.7GHz, 2GB DDR3L SODIMM RAM (max 8GB), SATA 6Gb/s, 1 x 2.5GbE + 1 x GbE LAN, 3 x USB 3.2 Gen1 ports, HDD hot-swappable with lockable trays and keys
המחיר שלנו: הצעת מחיר
מעוניינים לבנות באנדל בהתאמה אישית? צרו איתנו קשר!
Package Content
- QNAP TS-231P3 Storage
- 1 x Ethernet cable
- 1 x Power cords
- 16 x Flat head screw (for 3.5" HDD)
- 12 x Flat head screw (for 2.5" HDD)
- AC Adapter: PWR-ADAPTER-60W-A01
- Quick Installation Guide
סקירה:
Powered by Annapurna Labs Alpine AL-314, quad-core 1.7 GHz processor, 2GB DDR3L RAM, one 1GbE LAN port and one 2.5GbE LAN port, the TS-231P3 features a 2.5GbE RJ45 port, providing up to 2.5 times the speed of regular Gigabit Ethernet and enabling smoother multimedia playback and everyday usage. The TS-231P3 ensures data security by supporting AES 256-bit encryption and various local/remote/cloud backup options – including snapshot protection that allows for files and data to be reverted to previously-recorded states if they are accidentally deleted, modified or affected by malware.
Available Models
- TS-231P3-4G-
Annapurna Labs AL-314 quad-core 1.7GHz processor with 4GB RAM (1 RAM slot, upgradable to 8GB) - TS-231P3-2G-
Annapurna Labs AL-314 quad-core 1.7GHz processor with 2GB RAM (1 RAM slot, upgradable to 8GB)
2.5GbE connectivity for smoother everyday use and multimedia playback.
HBS backs up and synchronizes NAS data to remote servers or cloud storage, while QuDedup deduplicates data at the source to optimize bandwidth and storage utilization.
Snapshots fully record the system status and data. If files are accidentally deleted or modified, they can be quickly restored to previously-recorded states.
Supports LXC and Docker® containers for rapidly deploying application services across various platforms.
File Station centralizes NAS and cloud-based files for easy access. Files can also be easily encrypted to protect sensitive data.
Expand the TS-231P3 storage capacity by connecting TR and TL series storage enclosures.
מאפייני המערכת:
Build a faster home network with QNAP
The TS-231P3 includes a 1GbE port and a 2.5GbE port to provide a smoother NAS experience and multimedia playback. Additional network connection options from QNAP include USB 3.2 Gen 1 to 5GbE adapters (supports N-BASET/Multi-Gig), QXG 5GbE PCIe cards, and QNAP QSW 10GbE switches. All these options allow users to revolutionize their home network at a cost-effective price. The TS-231P3 features three USB 3.2 Gen 1 port that delivers outstanding multitasking performance.
Easy and Secure File Management
File Station allows direct management of files stored on the TS-231P3 and in the cloud. Users can easily upload files from their PC, drag/drop files between folders, rename/delete files, and configure file/folder permissions to prevent unauthorized access. Users can also use Microsoft Office Online to directly view/edit Microsoft Office documents stored on the TS-231P3. Confidential/sensitive data can also be encrypted to add extra security.

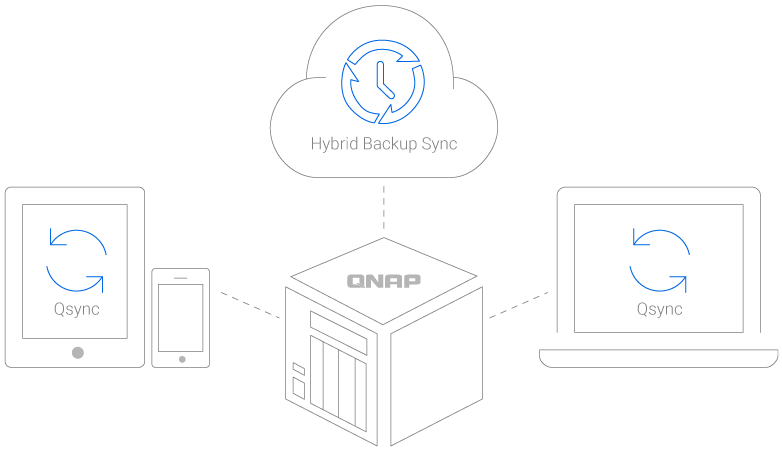

Multi-Point File Backup, Access, and Sync
The TS-231P3 supports file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows®, Mac®, and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-231P3 becomes available for all linked devices (such as computers, laptops, and mobile devices). Hybrid Backup Sync helps backup/synchronize data on the TS-231P3 to another QNAP NAS, remote server, or cloud storage for disaster recovery. Additionally, QuDedup technology greatly improves the efficiency of multi-version backup to destination storage, while optimizing storage utilization. You can install the QuDedup Extract Tool on your computer and restore deduplicated files to their normal status.
Protect Important Data with Snapshots
Snapshots help protect data by fully recording the NAS system state and metadata. With snapshots, users can quickly restore files to previously-recorded states if files are accidentally deleted or modified, or if the system is compromised by malware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data.
Take full control of NAS system status and data security
Notification Center consolidates all QTS system events and alerts, providing a single-app solution for notifications. Security Counselor recommends actions and settings to improve the TS-231P3 security.
Stay informed at all times
The Notification Center offers a single-app solution for QTS system events and alert notifications. This removes the need to configure different app settings and helps users streamline management processes and save time.
NAS security portal
Security Counselor checks for weaknesses and offers recommendations for users to protect their TS-231P3. It also integrates anti-virus and anti-malware software to ensure comprehensive data protection.
Comprehensive surveillance solution for 24/7 security
Surveillance Station features a user-friendly interface and supports over 3,000 IP cameras. With an expandable IP camera channel licensing system, users can build a comprehensive surveillance system for real-time monitoring, video and audio recording and playback. Budget-conscious users can also save money on cameras by using USB webcams to record footage. Surveillance feeds can be monitored at any time by using the Vmobile app on mobile devices.
3,000+
Compatible IP cameras
2
Free IP camera channels
16
Expandable channels
QUSBCam2
Use USB webcams as IP cameras
Extend NAS functionality with Containers and Apps
Container Station integrates LXC and Docker® lightweight virtualization technologies, allowing users to host and operate containerized applications directly on the TS-231P3. With many popular and fully-configured applications available from the built-in Docker Hub® (including for automation and multimedia), the TS-231P3 provides users with a vast array of potential functions and application capabilities.
The TS-231P3 also features apps for backup/sync, content management, communications, downloading, and entertainment. Every app can be installed from the QTS App Center with a single click.
Multiply Your Productivity
The app-driven QTS operating system provides solutions for simplifying file backup, management, search, and more.
QmailAgent
Centrally manage and switch between different email accounts, back up emails to the TS-231P3, and safeguard email security and personal privacy.
Notes Station 3
Notes Station 3 provides the advantages of collaborative note-taking with improved productivity to provide higher efficiency for your workgroup.
Full-Text Search
Qsirch quickly finds images, music, videos, documents, emails, and other files.
Smart Filing
Qfiling automates file organization. Files are automatically archived into folders based on your settings.
Flexible and economical storage expansion
QNAP provides easy storage capacity expansion solutions. Here are several ways to expand the TS-231P3 storage to accommodate data growth:
Attach Expansion Enclosures
Connect two RAID expansion enclosures (TR-004 or TR-002) or two USB 3.2 Gen 2 JBOD (TL-D800C) and use the QTS Storage & Snapshots Manager to handle NAS capacity expansion.
Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-231P3.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Extend hardware warranty up to 5 years
The TS-231P3 is backed by a 2-year warranty at no additional costs. You can purchase a warranty extension that extends your warranty coverage up to 5 years.
חומרה Specifications:
| TS-231P3-4G | TS-231P3-2G | |
|---|---|---|
| CPU | AnnapurnaLabs, an Amazon company Alpine AL314, 4-core, 1.7GHz | |
| CPU Architecture | 32-bit ARM | |
| Floating Point Unit | ||
| Encryption Engine | ||
| System Memory | 4 GB SO-DIMM DDR3 | 2 GB SO-DIMM DDR3 |
| Maximum Memory | 8GB DDR3 | |
| Memory Slot | 1 x SO-DIMM DDR3 | |
| Flash Memory | 512 MB (Dual boot OS protection) | |
| Drive Bay | 2x 3.5-inch SATA 6Gb/s, 3Gb/s | |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
|
| Hot-swappable | ||
| SSD Cache Acceleration Support | ||
| Gigabit Ethernet Port (RJ45) | 1 | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1 | |
| Jumbo Frame | ||
| USB 3.2 Gen 1 port | 3 | |
| Form Factor | Tower | |
| LED Indicators | Power, Status, LAN, USB, HDD1-2 | |
| Buttons | Power, Reset, USB Auto Copy | |
| Dimensions (HxWxD) | 6.65 × 4.02 × 8.62 inch | |
| Weight (Net) | 3.22 lbs | |
| Weight (Gross) | 5.42 lbs | |
| Operating temperature | 0 - 40 °C (32°F - 104°F) | |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | |
| Power Supply Unit | 60W Adapter, 100-240V | |
| Power Consumption: HDD Sleep Mode | 8.46 W | |
| Power Consumption: Operating Mode, Typical | 15.6 W Tested with drives fully populated. |
|
| Fan | 1 x 70mm, 12VDC | |
| Sound Level | 19.2 db(A) | |
| System Warning | Buzzer | |
| Kensington Security Slot | ||
| Max. Number of Concurrent Connections (CIFS) | 400 | |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.
מבט על המוצר:

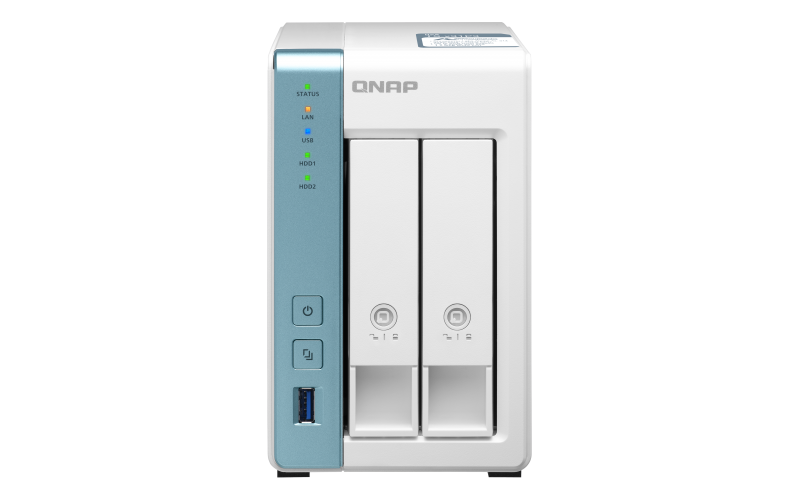

 Front View |

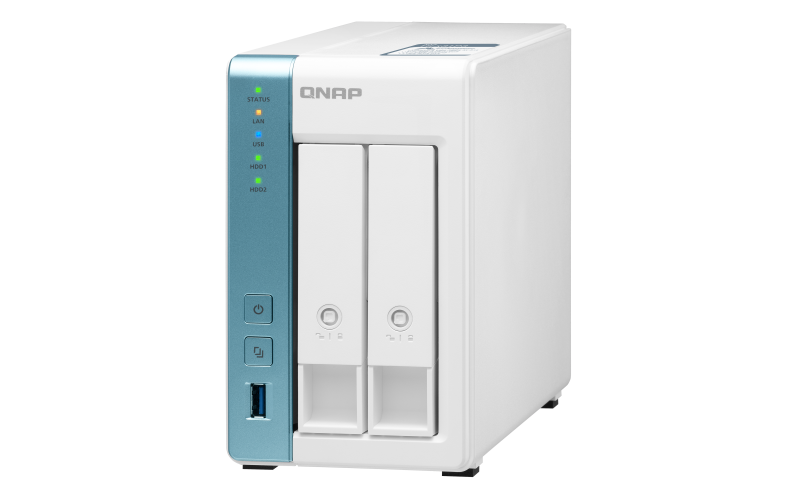

 Top Right View |

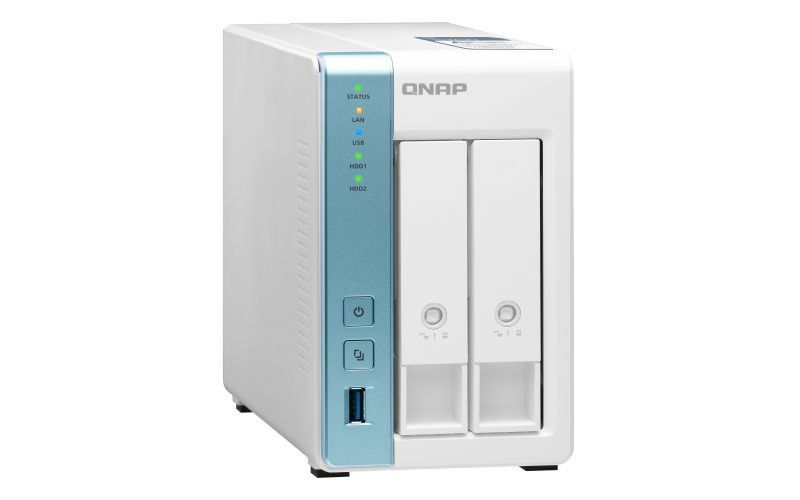

 Top Left View |

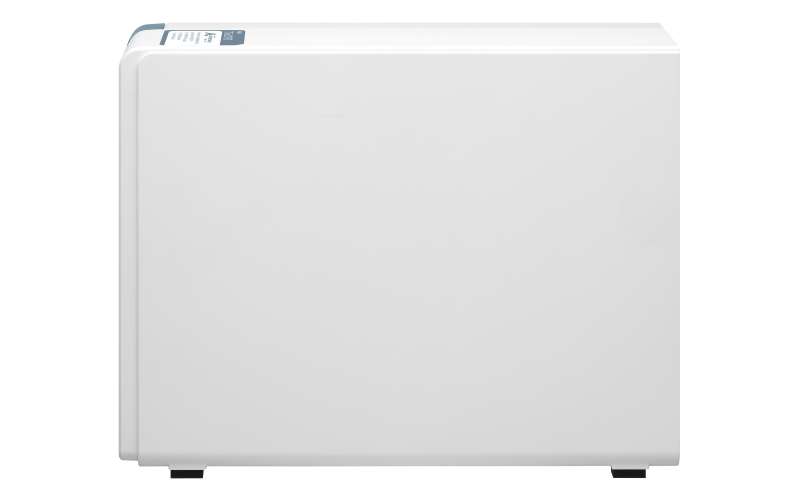

 Right Angle View |

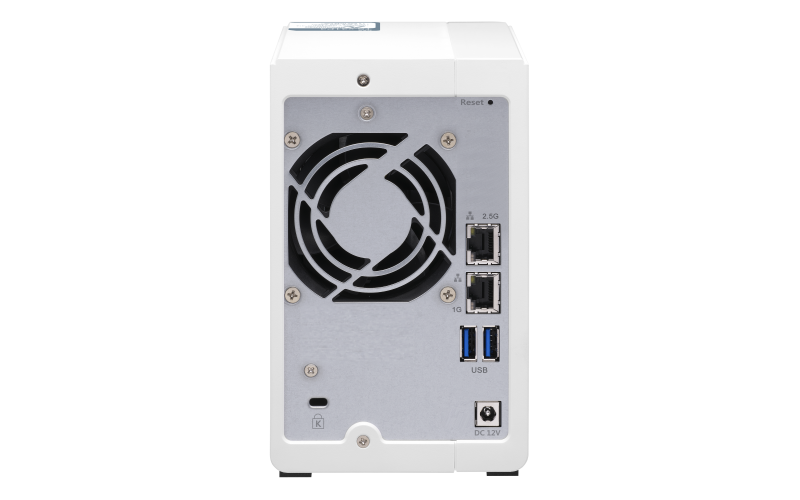

 Rear View |

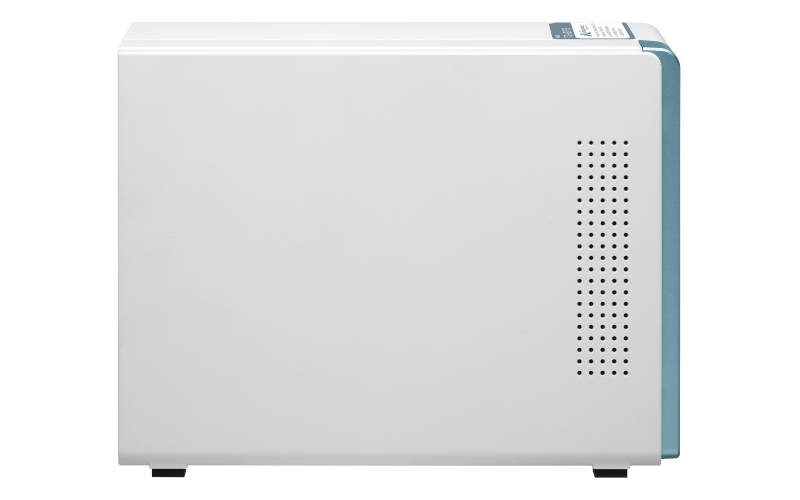

 Left Angle View |

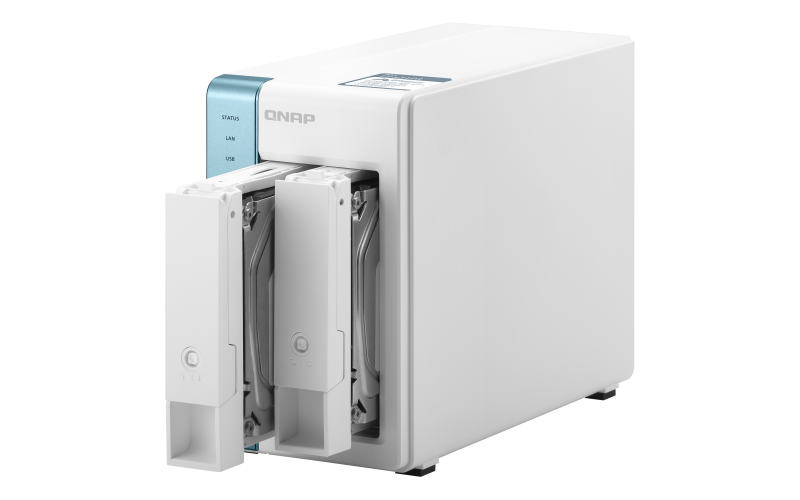

 Hot Swappable |
