The TS-873 is powered by a high-performance and energy-efficient AMD R-Series CPU and provides two PCIe slots for greater functionality. You can install a QNAP QM2 expansion card to add M.2 SSD caching/10GbE connectivity; a compatible wireless card to use the TS-873 as a wireless access point; and an entry-level graphics card to boost system performance for 4K video performance. The TS-873 allows you to flexibly deploy a wide range of applications with a more affordable budget.
Package Content

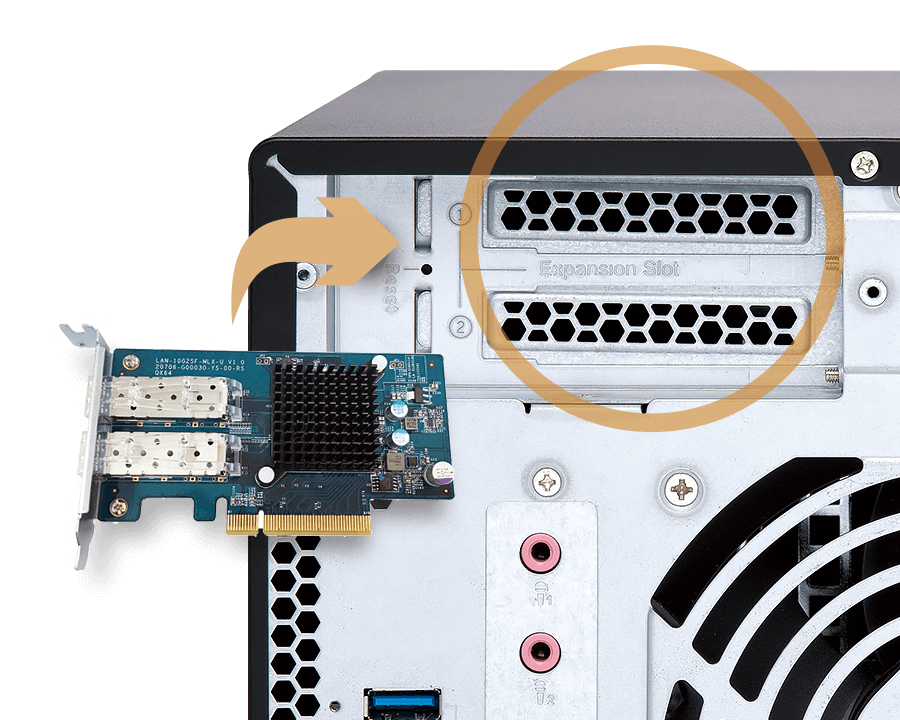

The TS-873 features two PCIe (Gen3 x4) slots, allowing for installing single/dual-port 10GbE NICs to accelerate applications that demand higher bandwidth such as virtualization, media workflows, and backup/restoration tasks for an ever-growing amount of data; or a USB 3.1 Gen2 (10Gb/s) expansion card for transferring large media files to and from USB storage. You can also install QM2 cards, wireless network cards or an entry-level graphics card to extend NAS functionality.
Note: USB 3.1 performance may vary depending on hardware/software limitations and usage environment.
Equipped with a next-gen AMD R-Series RX-421ND quad-core 2.1 GHz CPU (Turbo Core up to 3.4 GHz) with up to 64GB dual-channel DDR4 RAM, the TS-873 enables lightning-fast multi-tasking with low power consumption for up to 2379 MB/s throughput with a 10GbE configuration. With a hardware-accelerated AES-NI encryption engine, the TS-873 also provides unmatched encryption performance in its class (up to 2332 MB/s with AES 256-bit full NAS volume encryption) to boost system performance while ensuring the safety of sensitive business data stored on the NAS.
The strong and feature-packed hardware bolsters overall system performance. Coupled with a flexible and expandable architecture, the TS-873 can fulfill diverse application needs.

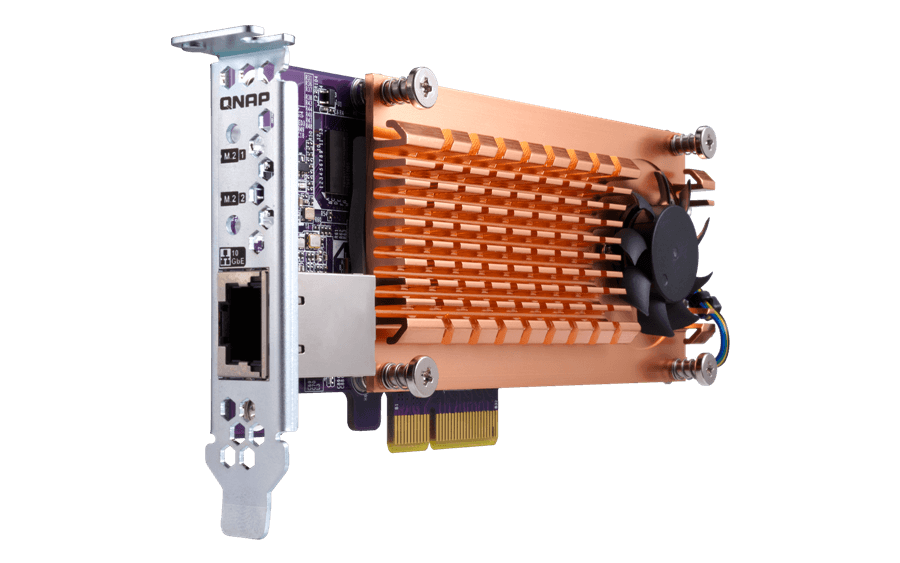

The TS-873 supports the innovative QM2 PCIe card that allows for adding up to two M.2 SSDs. You can configure SSD caching, or create a RAID 5 tiered storage along with the two M.2 SSDs in the NAS*. As these M.2 SSDs will not occupy any 3.5-inch drive bays, the QM2 card allows you to maximize both your storage capacity and performance. There are also QM2 cards that include 10GbE 10GBASE-T connectivity to provide SSD caching with high-speed network connectivity on a single card.
*Note: M.2 SSDs for NAS and QM2 cards are sold separately.

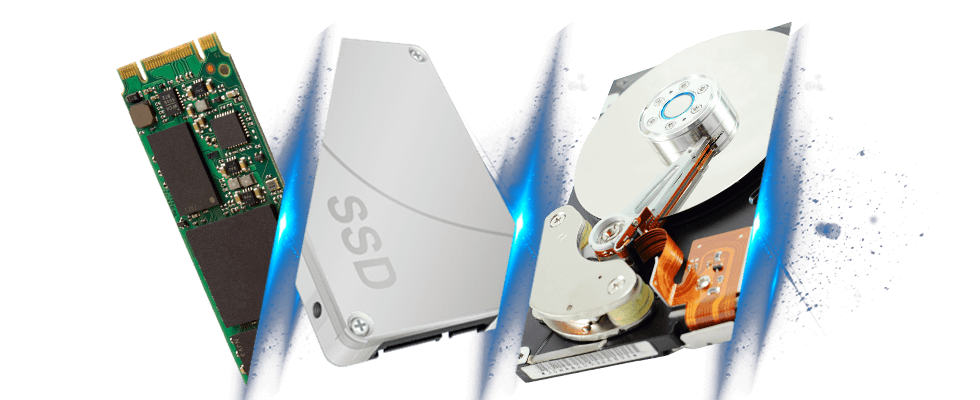

The TS-873 features SSD caching, and also supports optional M.2 SATA 6Gb/s SSDs (sold separately). Using an SSD cache boosts overall system performance, and is perfect for improving the overall workflow of random IOPS demanding applications such as virtualization. QNAP’s Qtier™ technology also continuously optimizes storage efficiency by tiering files and data across M.2 SSD, 2.5-inch SSD, and high-capacity SATA drives based on access frequency. The new Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
Note: The M.2 SSD is optional. As M.2 SSD operations can easily generate excessive heat, it is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.

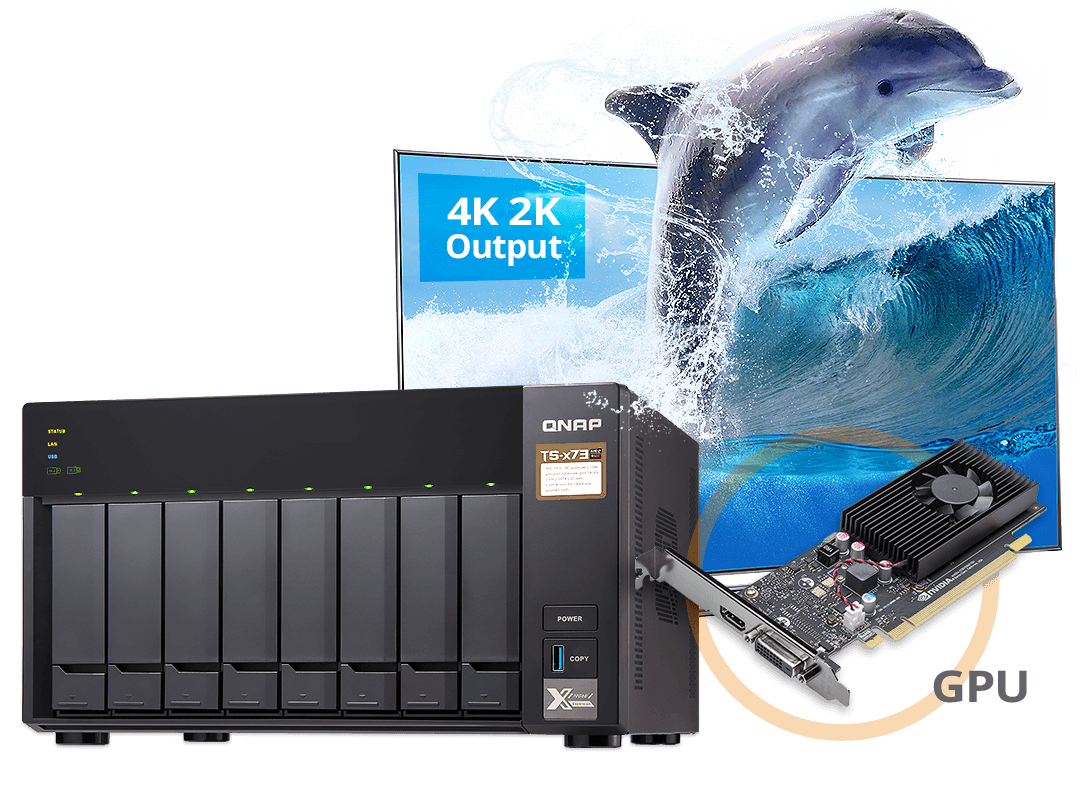

The TS-873 allows for installing a low-power graphics card (powered solely by the PCIe slot) to boost system performance. With a graphics card installed, the TS-873 also enables smoother video editing workflows and supports 4K UHD transcoding to deliver an exceptional multimedia experience. You can also use the QNAP remote control (sold separately) or the Qremote mobile app to use the NAS as a home theater PC.
Note:

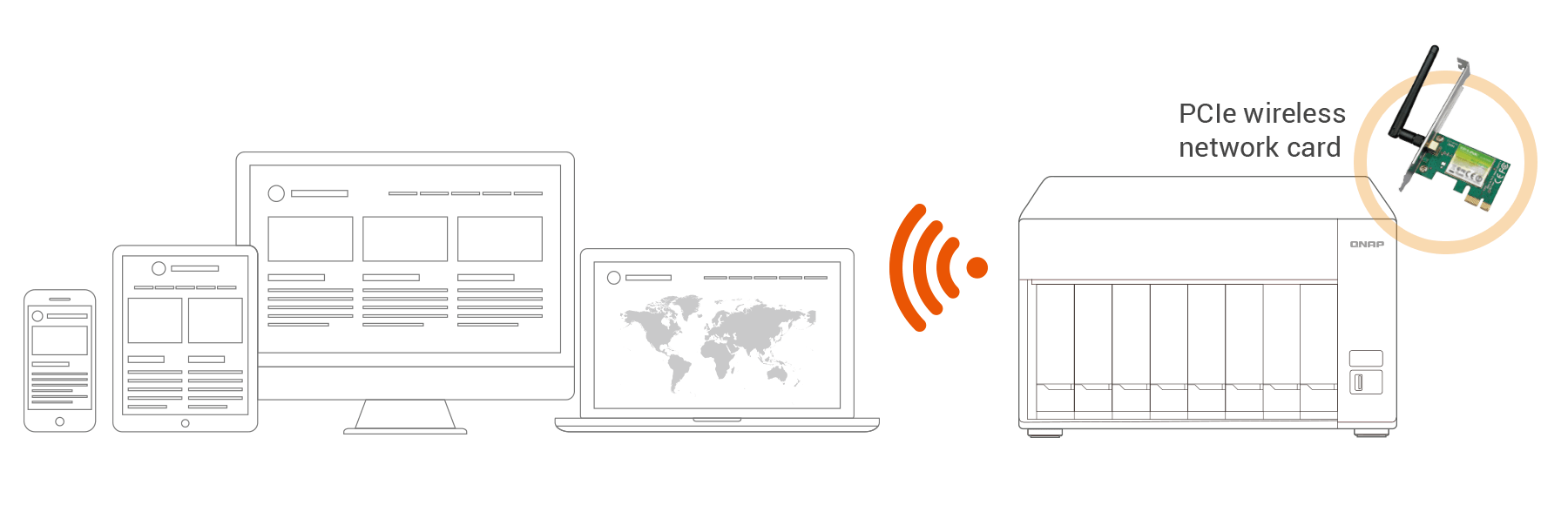

Install a compatible PCIe wireless network card (for example: QNAP QWA-AC2600) on the TS-873 and use with the WirelessAP Station app to use your NAS as a convenient wireless base station. Your mobile devices and PCs can directly connect to your NAS for easy access to its services and Internet connection.

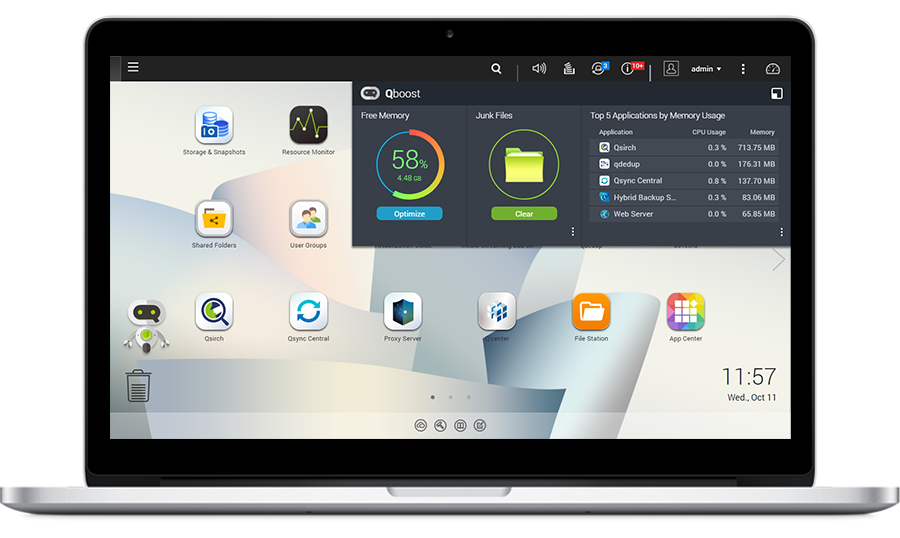

With modularized multiple applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more, making your NAS experience easier, efficient, and more flexible! The built-in App Center with hundreds of install-on-demand apps realizes near-limitless NAS functionality. The new Qboost provides a NAS optimization tool that helps accelerate applications, recover system resources, and schedule applications. QTS breaks the barriers of devices, platforms, and geography to bring you optimized cloud experiences and incorporates advanced features.
Two PCIe Gen3 x4 slots support QM2 cards, 10GbE adapters, or wireless network cards.
Supports entry-level graphics card, allowing for 4K video transcoding and output.
Dual M.2 SATA 6 Gb/s SSD slots allow for setting up caching or storage pools, improving file access efficiency.
Qtier™ auto-tiering technology and SSD caching enable 24/7 optimized storage efficiency.
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
Snapshots fully record system status and data. If files are accidentally deleted or modified, you can quickly restore the data from a snapshot.
| CPU | Processor: AMD R-Series RX-421ND quad-core 2.1 GHz processor, Turbo Core up to 3.4 GHz Architecture: 64-bit Encryption Engine: AES-NI |
| System Memory | 8 GB DDR4 (2 x 4 GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x SODIMM DDR4 (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) |
| Flash Memory | 512MB DOM |
| Drive Bay | 8 x SATA 6 Gbps |
| Drive Compatibility | • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives |
| M.2 SSD Slot | 2 x M.2 2260/2280 SATA 6Gb/s SSDs (Sold separately) Note: 1. The M.2 SSD is not included as standard. 2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | • Drive bays 1 to 8 • M.2 slots 1 to 2 • Optional: M.2 SSD using QNAP QM2 PCIe expansion card |
| Hot-swappable | The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. |
| Gigabit Ethernet Port | 4 x RJ45 |
| PCIe Slot | 2 x PCIe 3.0 x4 Note: Support full-height 10GbE LAN card, USB 3.1 Gen2 (10Gb/s) expansion card, QM2 card, PCIe wireless network card or a bus-powered graphics card. |
| USB Port | 4 x USB 3.0 (Front: 1; Back: 3) |
| Audio | • 2 x 3.5 mm dynamic microphone jacks • 1 x 3.5 mm line-out jack • 1 x speakers Note: You cannot use the speakers and the line-out jack simultaneously. |
| USB One Touch Copy | Front: USB 3.0 |
| IR sensor | Optional QNAP RM-IR004 remote control (MCE compatible) |
| Form Factor | Tower |
| Dimensions (H x W x D) | 188.2 x 329.3 x 279.6 mm |
| Power Consumption (W) | HDD standby: 36.43 W In operation: 70.26 W (with 8 x 2TB HDDs installed) |
| Sound Level | Sound pressure (LpAm): 23.4 dB(A) |
| Net Weight | 6.56 kg (14.46 lbs) |
| Power Supply Unit | 250W, 100-240V AC, 50/60Hz |
| Fan | System: 2 x 120 mm CPU: 1 x 60 mm |
| Operating Temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Security Slot | Kensington security slot |
| CPU | Processor: AMD R-Series RX-421ND quad-core 2.1 GHz processor, Turbo Core up to 3.4 GHz Architecture: 64-bit Encryption Engine: AES-NI |
| System Memory | 4 GB DDR4 (2 x 2 GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x SODIMM DDR4 (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) |
| Flash Memory | 512MB DOM |
| Drive Bay | 8 x SATA 6 Gbps |
| Drive Compatibility | • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives |
| M.2 SSD Slot | 2 x M.2 2260/2280 SATA 6Gb/s SSDs (Sold separately) Note: 1. The M.2 SSD is not included as standard. 2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | • Drive bays 1 to 8 • M.2 slots 1 to 2 • Optional: M.2 SSD using QNAP QM2 PCIe expansion card |
| Hot-swappable | The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. |
| Gigabit Ethernet Port | 4 x RJ45 |
| PCIe Slot | 2 x PCIe 3.0 x4 Note: Support full-height 10GbE LAN card, USB 3.1 Gen2 (10Gb/s) expansion card, QM2 card, PCIe wireless network card or a bus-powered graphics card. |
| USB Port | 4 x USB 3.0 (Front: 1; Back: 3) |
| Audio | • 2 x 3.5 mm dynamic microphone jacks • 1 x 3.5 mm line-out jack • 1 x speakers Note: You cannot use the speakers and the line-out jack simultaneously. |
| USB One Touch Copy | Front: USB 3.0 |
| IR sensor | Optional QNAP RM-IR004 remote control (MCE compatible) |
| Form Factor | Tower |
| Dimensions (H x W x D) | 188.2 x 329.3 x 279.6 mm |
| Power Consumption (W) | HDD standby: 36.43 W In operation: 70.26 W (with 8 x 2TB HDDs installed) |
| Sound Level | Sound pressure (LpAm): 23.4 dB(A) |
| Net Weight | 6.56 kg (14.46 lbs) |
| Power Supply Unit | 250W, 100-240V AC, 50/60Hz |
| Fan | System: 2 x 120 mm CPU: 1 x 60 mm |
| Operating Temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Security Slot | Kensington security slot |
Datasheet for QNAP TS-873 is coming soon.
