QNAP TVS-882ST2
Thunderbolt™ 2 NAS with eight 2.5” SSD/HDD and 10GbE connectivity
אינו נמכר יותר. רישיונות ושירותים נוספים זמינים לרכישה על סמך המידע המופיע מטה TVS-882ST2
QNAP Products
מחירים נוספים מופיעים למטה, או לחצו כאן!
שימו לב: כל המחירים באתר כוללים מע"מ. החיוב יבוצע על פי שער "העברות והמחאות מכירה" של המטבע (דולר אמריקאי) ביום אישור ההזמנה.
Overview:

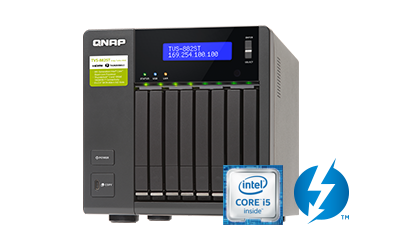

The TVS-882ST2 is powered by an Intel® 6th Generation Core™ i5 Quad-core processor with AES-NI hardware encryption and provides a Thunderbolt™ 2/NAS/iSCSI SAN triple solution. With Thunderbolt™ 2, 10GbE, USB 3.1 Type-C + Type-A 10Gbps, and 4K output it provides the performance and connectivity to empower small offices and studios to take their business to the next level. The software-based Thunderbolt-to-Ethernet (T2E) function also allows Thunderbolt-enabled computers to access Ethernet networks by connecting them to the TVS-882ST2.
- Eight 2.5” SATA 6Gb/s SSD/HDD slots
- High-speed Thunderbolt™ 2 (20Gbps) and 10GbE dual networks
- High flexibility with USB 3.1Gen 2 10Gbps Type-A & Type-C ports
- The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
- 4 available combinations with Mac/PC and JBOD for flexible attaching, sharing and expansion
- HDMI with 4K 30Hz output
- Supports QvPC Technology and features integrated virtualization and container solutions
- Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-882ST2’s storage capacity
- Scalable up to 56 SSDs/HDDs with the Thunderbolt™ 2 storage expansion enclosures TX-800P/ TX-500P
Specifications:
| TVS-882ST2 Specifications | |
|---|---|
| Ordering P/N | TVS-882ST2-i5-8G |
| Processor | 6th Genertion 14nm Intel® Core™ i5-6442EQ 1.9 GHz Quad-core processor |
| Hardware Encryption Accleration | ， AES-NI |
| System Memory | 8GB DDR4 (2 x 4GB) |
| Maximum Memory | 32GB (2 x 16GB) |
| Memory slot | 2 x SODIMM DDR4 (For dual-DIMM configurations, you must use a pair of identical DDR4L modules.) |
| Flash Memory | 512MB DOM，installed QTS operating system |
| Drive Type | 8 x 2.5" SATA 6Gb/s SSDs/HDDs (up to 9.5mm SSD/HDD support) |
| Thunderbolt Port | 2 x Thunderbolt™ 2 high-speed port |
| 10GbE Port | 2 x 10GbE 10GBASE-T LAN ports |
| GbE Port | 2 x Gigabit RJ45 LAN ports |
| USB 3.1 Port | 1 x Type-C + 1 x Type-A USB 3.1 Gen2 10Gbps |
| USB 3.0 Port | 2 |
| LCD Panel | |
| PCIe Slot | 1 x PCIe Gen3 (x8) + 1 x PCIe Gen3 (x4) Both PCle slots are occupied by a Thunderbolt™ 2 card and a 10GbE adapter |
| HDMI | 1, max. resolution 3840 x 2160 @ 30Hz |
| Audio Input | 3.5mm microphone jacks (dynamic microphones only) |
| Audio Output | 3.5mm Line Out jacks (for amplifier or headphone amplifier) |
| LED Indicator | Status/Power、USB、Drive 1-8 |
| Button | Power/Status, USB Auto Copy, Reset |
| IR Sensor | ， supports QNAP RM-IR004 remote controls |
| Other | Kensington security slot，console port |
| Dimension (H x W x D) | 177 x 180 x 235 mm 6.97 x 7.09 x 9.25 inch |
| Weight | Net：3.97 kg (8.75lbs) |
| Operating Temperature | 0 ~ 40˚C |
| Relative Humidity | 5~95% RH non-condensing, wet bulb：27˚C |
| Noise Level | 15.2 dB (A) Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS |
| Power Consumption | HDD standby：25.57W In operation：42.70W (with 8 x 1TB HDDs installed) |
| Power | ATX 240W，Input：100V-240V ~ / 3.5A, 47Hz-63Hz |
| Fan | 1 x 12cm (12V DC) |
Product Views:

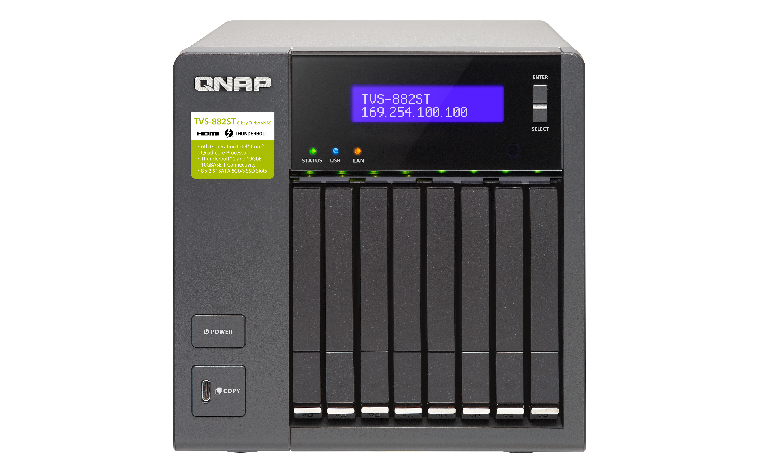

Front View |

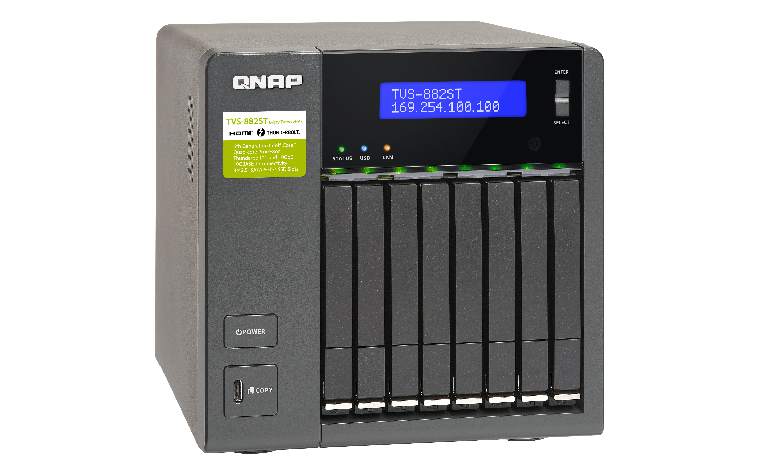

Left View |

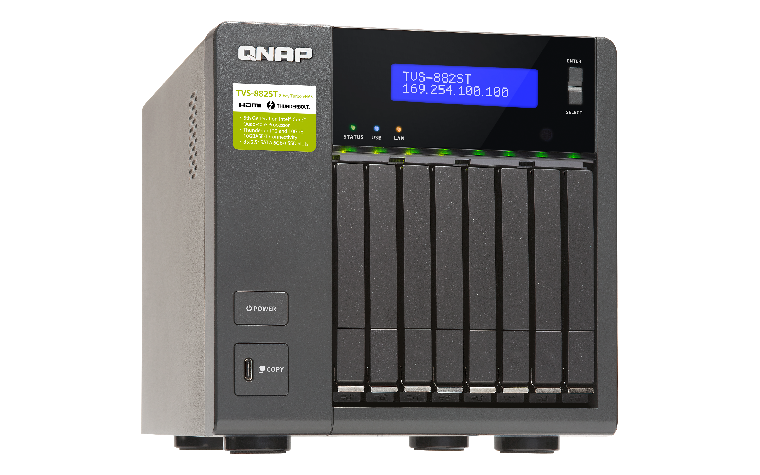

Left Angle View |

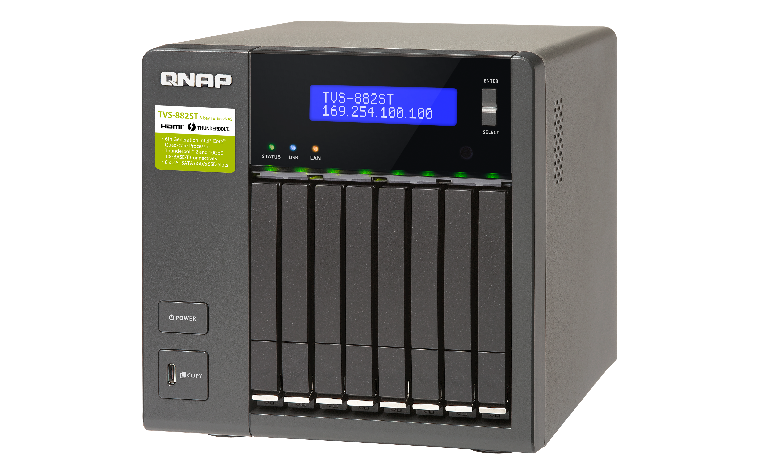

Right View |

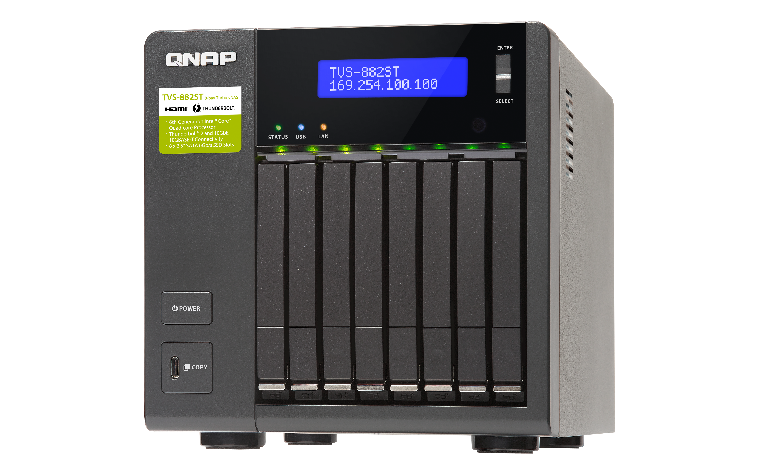

Right Angle View |

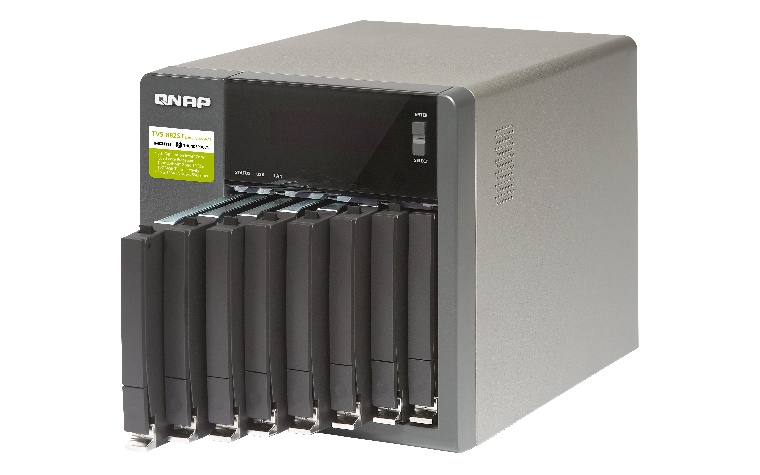

Open View |

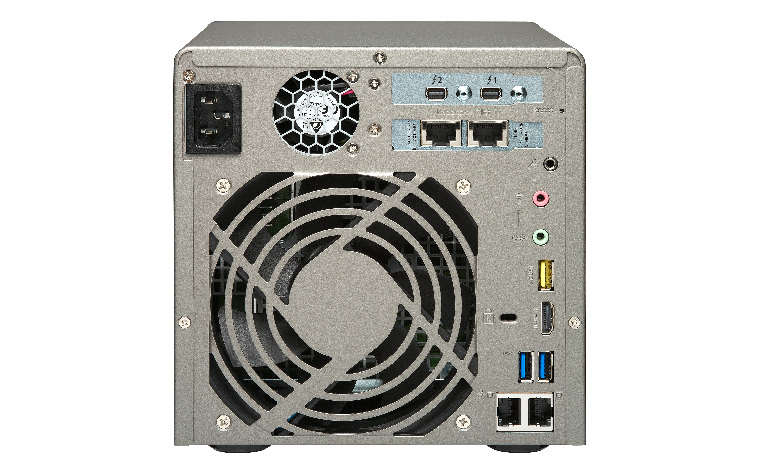

Rear View |
