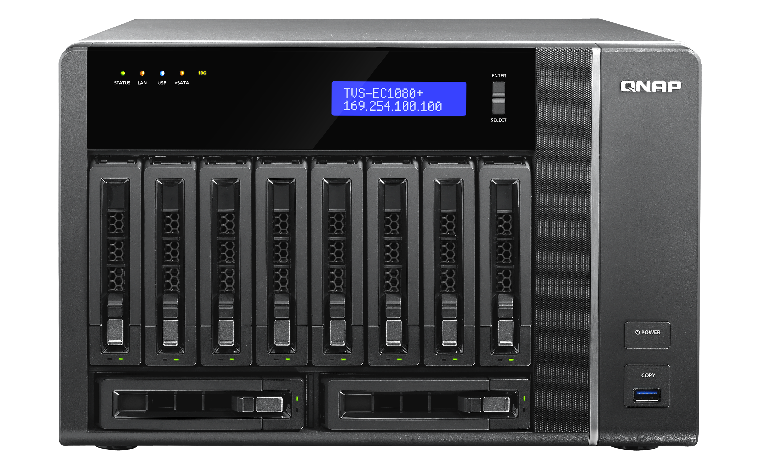

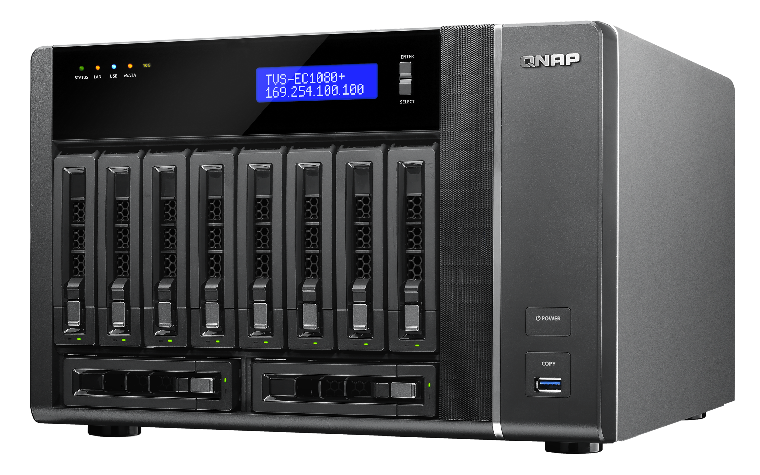

10-bay, Edge Cloud Turbo vNAS with built-in dual-port 10GbE & 256GB mSATA modules
מחירים נוספים מופיעים למטה, או לחצו כאן!
שימו לב: כל המחירים באתר כוללים מע"מ. החיוב יבוצע על פי שער "העברות והמחאות מכירה" של המטבע (דולר אמריקאי) ביום אישור ההזמנה.
QNAP TVS-EC1080+, featuring the easy-to-use QTS operating system, provides a reliable and scalable NAS solution to fulfill data backup, file synchronization and remote access. The TVS-EC1080+ features built-in dual-port 10GbE and 256GB mSATA modules, delivers exceptional performance, and supports cross-platform file sharing, comprehensive backup solutions, iSCSI and virtualization applications, and many practical business functions, making it the ideal choice for SMBs to secure important business data. It also includes abundant multimedia applications backed by its powerful hardware specifications.
- 2,000+ MB/s throughput and 223,000+ IOPS
- Built-in 256GB mSATA modules and up to 4 SSDs for caching, beneficial to IOPS demanding applications
- Enjoy 4K2K UHD videos HDMI local display and transcoding with new HD Station 2.0
- Monitor and manage multiple QNAP Turbo NAS with Q’center Multi-NAS management system
- Use the TVS-EC1080+ as a PC with exclusive QvPC Techonology
- Virtualization-ready, centralized data storage, backup, sharing and disaster recovery
QTS - Simple and efficient
Thanks to the intuitive user interface of QTS, system operations of the TVS-EC1080 are smooth and handy. Its intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater operating efficiency.
The TVS-EC1080+ supports 6Gbps hard drives driving over 2,000 MB/s throughput and 223,000 IOPS*. Featuring with Intel Xeon E3-1245 v3 3.4GHz quad-core processor or above and 32GB DDR3 RAM, the TVS-EC1080+ greatly enhances efficiency of CPU-consuming tasks and serves more concurrent tasks at the same time.
*Tested in QNAP Lab. Figures could vary by environment.
2 Client PC configuration: Intel(R) Core(TM) i7-2600 CPU, 16GB DDR3 RAM, Windows 7 professional 64-bit, Dual-port Intel X520 10GbE Server Adapter, IOMeter sequential read and write.
NAS configurations: OCZ Vertex4 VTX4-25SAT3-128G SSDs with RAID 6 configuration, QNAP LAN-10G2T-U dual-port 10GBase-T network adapter*1
Internal cache port for IO acceleration
The TVS-EC1080+ features pre-installed 256GB mSATA modules, and up to 4 SSDs can be used for caching, remarkably boosting the IOPS performance of storage volumes. It is perfect for improving overall workflow of random IOPS demanding applications such as database and virtualization. The internal cache port design reserves the space of hard drive tray for more storage capacity.
The TVS-EC1080+ features two inbuilt 10 Gigabit ports to deliver 10 Gigabit high speed network. The 10GbE-ready TVS-EC1080+ delivers lightening data throughput. Coupled with the support for large storage capacity, the TVS-EC1080+ is perfect for data centers to storage big data and excel in fast data transmission, and for editing large size videos on-the-fly without transferring the videos between the TVS-EC1080+ and desktop computers.

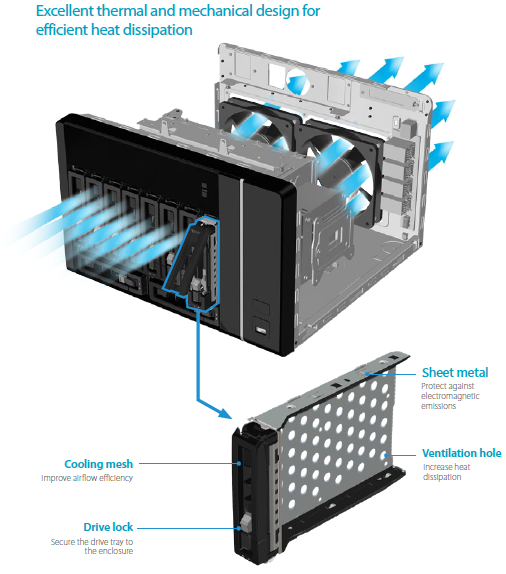

QNAP superb hardware design
To keep the hard disks to run smoothly even under the heaviest load, the QNAP Turbo vNAS features enhanced thermal and mechanical design to dissipate heat more effectively. In addition, the handle of the hard drive tray has a lock to prevent the HDDs from slipping out. And the sheet metal alongside the tray is employed for electromagnetic shielding.
4K2K Ultra-High-Definition ready
See even more detail with 4K2K! The TVS-EC1080+'s high quality hardware allows you to smoothly play 4K2K videos on an HDTV with XBMC local display through HDMI without heavily consuming system resources. Featuring Intel® HD Graphics P4600, the TVS-EC1080+ delivers superior real-time 4K2K (H.264) and 1080p video transcoding to convert videos to universal formats that can be smoothly played on PCs, mobile devices and Smart TVs. It allows multiple devices to simultaneously view different videos stored on the TVS-EC1080+ with on-the-fly hardware accelerated transcoding, saving your time to convert videos into different formats for different devices.
With the benefit of offline transcoding, even when you can only connect to an low-speed Internet connection, you can still enjoy smooth video playback via File Station, Video Station, and the Qfile mobile app by selecting a pre-rendered lower resolution video, saving system resources of the TVS-EC1080+ for other applications. The TVS-EC1080+ also allows you to set a dedicated folder for automatic video transcoding.
Monitor and manage multiple NAS with Q'center
Q'center turns your TVS-EC1080+ into a central management system to manage multiple Turbo NAS units. After installing Q'center in QTS App Center, you can use the TVS-EC1080+ to centrally manage multi-site Turbo NAS for monitoring system logs and managing firmware update and maintenance, and enjoy major benefits including ease-of-use, cost-efficiency, convenience and flexibility. Managing multiple Turbo NAS becomes so easy and efficiently.
Use your TVS-EC1080 as a PC with exclusive QvPC Technology
QNAP's exclusive QvPC Technology consolidates a number of high-end technologies including VM integration, multimedia transcoding, HDMI output, cloud integration and NAS connection technologies, allowing users to operate the TVS-EC1080+ as a PC when they plug in a keyboard, mouse and monitor. With QvPC Technology, the TVS-EC1080+ is transformed into a cost-effective device with PC functionalities for users to directly access stored data, run multiple applications using Windows/Linux/UNIX/Android-based VMs, surf the web on Google Chrome or Mozilla Firefox, watch Full HD videos with up to 7.1 channel audio with XBMC, monitor Surveillance Station in real time with local display, and much more. QvPC Technology allows you to directly manage and operate the virtual machines on the TVS-EC1080+ to fulfill various business applications, such as application services server (e.g. Web Server or Exchange Server) or different corporate managing systems.
Powerful QNAP flexible volume
QNAP flexible volume provides a more secure and flexible way to store the NAS data. This next generation volume offers powerful features such as storage pooling with multiple RAID group protection, thin provisioned volume with space reclaim, block-level iSCSI LUN, and online capacity expansion. The QTS Storage Manager neatly presents tools and options for managing system storage which simplifies the process of NAS capacity expansion and QNAP RAID expansion enclosure management.
Cross-platform file sharing, centralized data storage
The TVS-EC1080+ supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Data, logs and ISO image of CDs and DVDs can be centralized store in the NAS and protected by integrated antivirus solution. The Windows AD and LDAP services enable system administrators to configure user permissions by using existing Windows AD server, LDAP server or NAS build-in LDAP service. The TVS-EC1080+ supports SAMBA v4 and can act as a Windows domain controller to manage privilege settings.
Well-rounded backup solutions to secure data
The TVS-EC1080+ offers well-rounded backup solutions as a reliable backup center. QNAP NetBak Replicator supports scheduled and real-time data backup on Windows OS. Mac Time Machine is also supported to provide Mac OS X users with an effortless solution to back up data to the TVS-EC1080+.
Disaster recovery solutions bring peace of mind
The TVS-EC1080+ offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to a remote Turbo NAS or FTP server and synchronizes files to a remote folder from a local folder with better backup efficiency and reduced backup time. The TVS-EC1080+ also supports rsync protocol to back up data to another remote server on scheduling basis. Besides, data can be backed up to cloud storage, such as Amazon S3, Amazon Glacier, Microsoft Azure, ElephantDrive, Symform, Dropbox and Google Drive, and restored to the TVS-EC1080+ anytime.
Comprehensive security options
In the open network environment, business data might be exposed in potential hack. The TVS-EC1080+ provides numerous security options, such as encrypted access, IP blocking, and so on. Besides, IT administrators can control the access rights of each user to different folders, preventing unauthorized access to important files. The TVS-EC1080+ is validated with military level FIPS 140-2 AES 256-bit encryption, preventing the sensitive business data from unauthorized access and breach even if the hard disk drives or the entire system were stolen.
Storage for comprehensive virtualization applications
The TVS-EC1080+ supports VMware ESXi, Citrix XenServer, Microsoft Hyper-V™ and Windows Server 2012, benefiting flexible deployment and management in the virtualization environments. The TVS-EC1080+ supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced efficiency of operations and management in virtualization applications.
Extend the functionality of the TVS-EC1080 with virtualization
The Virtualization Station transforms the TVS-EC1080+ into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform supporting multiple operating systems, fast virtual machine creation, virtual machine import/export, snapshot, and enables desktop operations on web browser. With the easy-to-use interface, you can centrally manage all virtual machines created on the TVS-EC1080+ with least efforts. Furthermore, you can download VMs on demand from the online VM markets and import them to TVS-EC1080+ to use directly without any complex procedure.
Optimize IT assets management with the IT Management Station
The IT Management Station, powered by Mandriva Pulse, provides a flexible IT system management solution for managing multi-OS and multi-site IT assets for businesses of all sizes. By installing the IT Management Station on the TVS-EC1080+, you can centrally manage multiple IT resources with numerous business applications including comprehensive inventory, centralized software deployment & updates, imaging, remote management & support, backup & restore, and more tasks with greater flexibility and productivity.
Highly-efficient storage solution for video editing
Digital film and video production produces volumes of data that require high performance RAID storage with sustainable throughput to balance with the demanding output of video editing. The TVS-EC1080+ fulfills storage and video editing needs with a high speed 10GbE network interface. Digital videos can be quickly stored and edited on the TVS-EC1080+ directly over the network.
File synchronization across multiple devices
The Qsync utility turns your TVS-EC1080+ into a safe data center for file synchronization with large storage capacity. Any file uploaded to the TVS-EC1080+ will be made available for all linked devices, such as computers, laptops or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most updated files on different devices. Qsync provides multiple ways of file synchronization and group file sharing, greatly enhancing the flexibility of collaboration.
Comprehensive surveillance solution with 24/7 security
The TVS-EC1080+ Surveillance Station is a professional surveillance solution with a wide range of over 2,700 compatible IP camera models and expandable IP camera channel licenses. It supports real-time monitoring, video and audio recording and playback with flexible options to customize. You can also install the Vmobile app on your iOS® or Android™ mobile devices to manage the monitoring channels anytime and anywhere to safeguard your office environment, or install the Vcam mobile app to turn your device into a network camera to instantly record to your TVS-EC1080+. The TVS-EC1080+ offers 8 free IP camera channels and users can flexibly expand channels by purchasing additional licenses.
Install-on-demand apps to extend NAS functionality
The TVS-EC1080+ has built in App Center providing various install-on-demand apps developed by QNAP and third-party developers, including backup/sync, business, content management, communications, download, entertainment, and so on. It's also a central place to manage and update installed apps. Besides, QNAP's development platform brings forth the open-source spirit to welcome program developers to develop various applications, adding values to the TVS-EC1080+ for extensive opportunities.
Additional SMB-ready features
The TVS-EC1080+ supports various business applications as an all-in-one Turbo NAS with cost-efficiency.
The Turbo NAS supports FTP server to share large size files, coming with user-defined settings including bandwidth limitation, number of connections, and write-only permission.
The Turbo NAS supports Web server which allows numerous websites built on the same server conveniently. Administrators can manage up to 32 websites on the single one Turbo NAS with reduced IT cost.
The Turbo NAS supports RADIUS server which provides centralized authorization management for computers to connect and use a network service.
The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections.
The Turbo NAS can be used as a Printer server to send remote printing request via the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management and Bonjour printing for Mac OS X.
The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications.
Unified Storage Management
QNAP's Turbo vNAS business series is an unified storage system which can serve as iSCSI SAN storage and Turbo vNAS. The powerful Storage Manager can assist you manage iSCSI LUNs and volumes efficiently.
Intelligent Storage Manager
The QTS 4.1.2 Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical interface. Pools, disks and iSCSI storage, the Storage Manager provides a centralized place to easily manage different hard drives (e.g. SAS HDD and SATA HDD) and to maximize storage usage of the tiered and unified storage.
The Storage Manager dashboard presents an overview for IT administrators to easily check the storage allocation status. QTS 4.1.2 provides a more secure and flexible way to store and manage the NAS data. This next generation volume offers powerful features such as storage pooling with multiple RAID groups, thin provisioned volumes with space reclamation, and online capacity expansion. Just click "New Volume" and you can start to allocate capacity.
IT administrators can view the HDD information to check the HDD allocation status for RAID group. With the information, it can be ensured that there is no idle HDD for the maximized utilization of the storage resources.
IT administrators can aggregate multiple RAID groups into a big storage pool to flexibly utilize the storage capacity as a whole, protect them using redundancy and allowing for better protection against multiple disk failures for large-capacity environments. Multiple volumes can now be created on the Storage Pool to provide flexible deployment.
|Flexible Volume Allocation
QTS 4.1.2 allows creating multiple volumes on the Storage Pool for various applications in typical business environments with different workgroups. Each data volume and LUN can be extended without interrupting services.
QTS 4.1.2 supports two types of LUNs for efficient storage utilization: block-level and file-level iSCSI LUNs. The Turbo vNAS also supports multiple types of configurations for server connections:
- single LUN or multiple LUNs per iSCSI target.
- multiple iSCSI targets for a single LUN, only used for clustered environments
Block-Level iSCSI LUN
Besides storing data, volumes can be utilized as an iSCSI LUN. The block-level iSCSI LUN provides less overhead which improves the overall read/write performance.
File-Level iSCSI LUN
Users can consider file-level iSCSI LUNs if there isn't enough space for block-level iSCSI LUNs. The file-level iSCSI LUN can be used for creating a disk image for an iSCSI LUN.
Virtual Disk Drive - Increase flexibility of storage expansion
Virtual disks provide a more flexible way for IT administrators to expand storage. By using the built-in iSCSI initiator to connect an iSCSI target of the Turbo vNAS, you can create a virtual disk on the local server. The Turbo vNAS can be a stack master to connect up to 8 virtual disks or stack targets, aggregating storage space from multiple NAS systems. Thus, all NAS users only need to connect to a single target to access the space from all of the network storage devices.
QNAP high-performance unified and tiered storage solutions
Data used by enterprises continues to grow exponentially and with greater diversity in data types and importance. It is imperative to offer a secure and efficient storage solution that can process this enormous amount of data while minimizing the total cost of ownership.
Establishing a tired storage system based on efficiency and capacity can aid in improving overall processing efficiency. Enterprises can classify data accordingly by sharing folders with a file-based storage system and processing files that require more demanding data throughput with a block-based storage system to accommodate different usage models.
QNAP Turbo vNAS business series can flexibly configure different tiers to hard drives on a single unit according to different data usage needs, delivering the best unified and tiered storage solution.
Tiered storage for better efficiency
In the cloud era, enterprises need a storage architecture that can provide rapid access to dynamically scalable and virtualized IT resources. Classifying data into Hot Data (frequently-accessed) and Cold Data (rarely-accessed) to store them in a tiered storage can help achieve this goal efficiently and cost effectively. Businesses often use SSD to improve the overall workflow of random IOPS demanding applications such as databases and virtualization. Different types of storage media are used for different purposes. Hence, it is better to utilize different storage media according to the system requirements.
|Tier 1||Tier 2|
|Storage Type||SSD||SATA HDD|
|Characteristic||Balance of efficiency, capacity and usability||Ubiquitous, convenient, and inexpensive|
|Usage Scenario||Online transaction processing (OLTP)
Systems and ERP databases
|Archiving, online and offline backup storage, disaster recovery|
|Usage Example||Data, audio, email, database table, and video creation and other operations of the workflow in a virtualized environment||Low cost and energy saving|
|Typical Use||A wide variety of users and environments where performance is crucial||Typical for data at rest|
|Criterion||Weighs more on IOPS, throughput and resiliency||Weighs more on data volume and low cost per TB|
The following is a comprehensive comparison of general tiered storage devices.
|Solid State Drive (SSD)||SATA Hard Drive|
|Features||Low power consumption, no noise, antivibration, low heat, fast speed||Large capacity, lower reliability and performance|
|Capacity||80GB - 1TB||500GB - 6TB|
|Interface||SATA (Single Port) 6 Gb/s||SATA (Single Port) 6 Gb/s|
|External Continuous Transfer Performance||400-500 MB/s||100-170 MB/s|
|Average Response Time
|Input/Output Operations Per Second (IOPS)||120,000 / 40,000||Less than 100|
|Unrecoverable bit read error||1 LBA per 10E16||1 LBA per 10E14|
|Mean Time Between Failures (MTBF, hours)||N/A||0.8 million|
File Management (File Station)
With File Station, you can easily manage, upload, download, share files, and enjoy media playback anywhere with a web browser. File Station brings conventional file operations performed on the computer desktop to the web browser.
Qfile: Share files with mobile devices
You can install the Qfile app on your mobile device to browse and manage files stored on your Turbo vNAS anytime, anywhere.

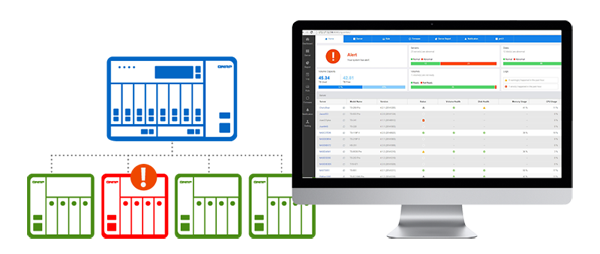

Q'center CMS (Central Management System)
Previously, IT administrators need to log in to Turbo vNAS units individually to check their status. The QNAP Q'center CMS (Central Management System) offers a platform to centrally manage multiple NAS units. You only need to install Q'center on the master NAS and set all other Turbo vNAS units as managed stations. You can also monitor and update firmware for all Turbo vNAS units at once with this centralized management utility.
Q'center Network Architecture
Q'center CMS (Central Management System) In order to use Q'center to monitor multiple Turbo vNAS units, you have to set up the master Turbo vNAS and other managed devices in the same network environment. QTS 4.1.2 provides the VPN server and VPN client function, making it easy for IT managers to establish the internal network architecture for Q'center deployment. Just set the master device as a VPN server and other devices the VPN clients, and the internal network environment will be established by VPN protocol automatically.
The TVS-x80 series supports Intel VT-x and virtual machine applications. Just download Virtualization Station from the App Center, and you can install & operate multiple operating systems including Windows, Linux, and UNIX. The virtual machines can be used in a variety of different ways to boost the functionality of your Turbo vNAS, just like having multiple computers with you.
Virtualization technology is normally used in enterprise IT environments, but with the growing needs of a digital office, virtualization is now our everyday applications. Many offices have printers, and when users want to print the documents stored on their Turbo vNAS and realized that the printer requires a Windows-only driver, they will need to boot up their PC just for this simple task.

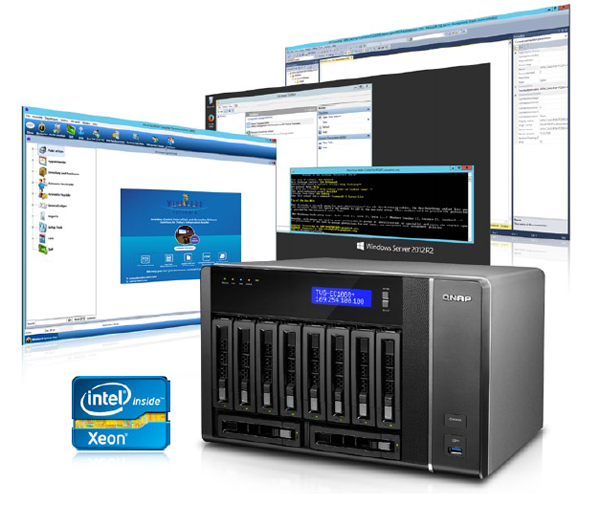

Deploy Enterprise Cloud Computing with the integrated Virtualization Station
Powered by an Intel Xeon E3 v3 processor and DDR3 RAM, the TVS-ECx80+Turbo vNAS series supports Windows Server 2012 R2 Virtualization. Every virtual machine on the Turbo vNAS can be allocated with 8 virtual processor cores, 30 GB memory, RAID storage, and virtual IO (VirtIO). It is ideal for deployment of compute-intensive IT applications and cloud-based business processes, including AD server, domain controller, Exchange server，SQL server and enterprise resource planning (ERP) system.

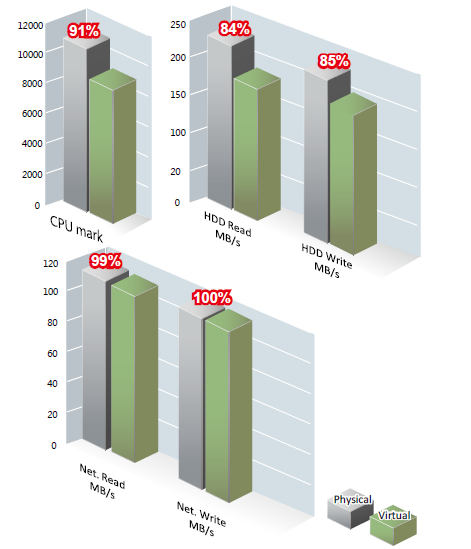

The VM on the TVS-ECx80+ Turbo vNAS series delivers the best-in-class virtualization performance of CPU (91% of physical CPU), HDD read and write (84% and 85% of physical CPU), and network read and write (99% and 100% of physical CPU).
Powered by QNAP's exclusive QvPC Technology
Based on Software-defined Everything, QvPC Technology is the result of years of R&D effort that QNAP has put into developing and perfecting its software and hardware expertise. QvPC Technology has consolidated a number of high-end technologies and latest IT trends including VM integration, multimedia transcoding, HDMI output, cloud integration, and NAS connection technologies, allowing users to operate Turbo vNAS as a PC when they plug in a keyboard, mouse and monitor. QvPC Technology can turn a NAS into a low-cost & high-performance 2-in-a box NAS that can function as a NAS and a PC. Whether you are working in a studio or at a remote site, you are assured to receive the best user experience.
QvPC Technology features HybridDesk Station (HD Station) as the user interface, which consists of QVM Desk, Defense Desk, and Local Display Desk and provides SMBs various software applications.
QNAP's Unique Transcoding Technology
Every year many SMBs produce hundreds of promotional videos for marketing purposes. However, due to the increasing use of HD videos (720p, 1080p), video files are becoming increasingly large in size and can use lots of network bandwidth to share or play them over a network.
With the popularity of high-definition smartphones and digital cameras, video resolutions are getting higher. A higher resolution means larger file sizes and more bandwidth needed to stream it. Transcoding creates videos with optimal resolutions for sharing & watching in order to save bandwidth, but also retains the unaltered original video on the Turbo vNAS.
Smart transcoding adapts to suit different bandwidth
The TVS-ECx80+ series provides a range of resolutions to play/share videos according to different bandwidth limits. Higher resolutions need more bandwidth, and you can select the right resolution for your network environment to get the best viewing experience.
Multi-mode transcoding function
- Background hardware-accelerated transcoding
The TVS-ECx80+ fully supports offline background transcoding for 4K (H.264) videos. Just add videos to the transcoding list and use the Turbo vNAS to convert the original high-resolution video for use with multiple resolutions. Then you can select an appropriate resolution when sharing or watching to match your device or network environment.
- Auto transcoding
When you set a folder on the Turbo vNAS to be an autotranscoding folder, videos added to it will be automatically converted to a resolution you have set. For example, if you set the folder to 360p, videos added to this folder will be automatically transcoded to 360p as a background task.
- On-the-fly transcoding
If you have many high-resolution videos, but did not transcode in advance, you can use on-the-fly transcoding. This will adapt to meet bandwidth limits, with the Turbo vNAS transcoding in real time for directly watching the video.
- Embed subtitles
By selecting the Embed Subtitles option in the Transcode Management function, you can embed subtitles to a video when converting a video to any resolution. The subtitles will then be displayed when a video is played on whatever device you are using.
- Hardware-accelerated transcoding technology
With Intel HD Graphics, video creation & conversion is faster, easier and can significantly reduce the time needed when handling multiple on-the-fly transcoding tasks.

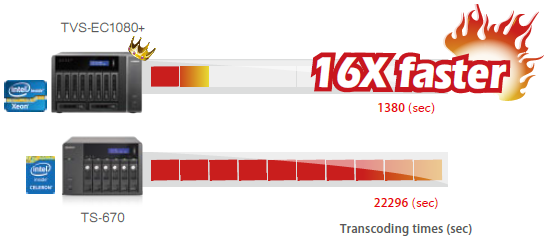

Compare the transcoding time between the TVS-EC1080+ and TS-670 with using the same high-resolution (1080p) video. Powered by an Intel Pentium® CPU with QNAP's exclusive transcoding technology, the TVSEC1080+ is 16 times faster than the Celeron®-based TS-670.
The Turbo vNAS supports iSCSI & NFS protocols and is virtualization ready with compatibility for VMware, Citrix, and Microsoft Hyper-V to provide buasinesses with powerful & flexible storage solutions for virtualization applications.
- Virtualization ready
The Turbo vNAS supports iSCSI & NFS protocols and is virtualization ready with compatibility for VMware, Citrix, and Microsoft Hyper-V to provide businesses with powerful & flexible storage solutions for virtualization applications.
- VAAI/Hyper-V Plug-in Support
Use the free QNAP vSphere Client plug-in and QNAP SMI-S provider for SCVMM and managing the Turbo vNAS from the virtualization management client console is easy.
- Secure and flexible storage utilization
The Turbo vNAS offers flexible management through creating and allocating iSCSI LUNs (Logical Unit Numbers), mapping and unmapping LUNs to and from iSCSI targets, and thin provisioning. CHAP authentication and LUN masking support reinforces secured deployment in virtualization applications.
- NAS/IP SAN unified storage
QTS supports NFS and iSCSI/IP-SAN storage solutions that can be utilized as network-shared storage of virtualized environments, helping to achieve an efficient cost-saving, energy-saving optimized storage capacity.
- VAAI for iSCSI, VAAI for NAS
The Turbo vNAS supports VMware VAAI for iSCSI and VAAI for NAS. Businesses can select either iSCSI or NFS as a centralized storage to boost performance. VAAI for iSCSI supports Full Copy (hardware-assisted copy), Block Zeroing (hardware-assisted zeroing), Hardware-assisted Locking, and Thin Provisioning with space reclaim. VAAI for NAS supports Full File Clone, Extended Statistics, and Reserve Space. The QNAP Turbo vNAS supports VAAI iSCSI and VAAI NAS to enhance storage performance in a virtualized environment.
- NAS management
QNAP SMI-S enables management of the QNAP Turbo vNAS directly through Microsoft System Center Virtual Machine Manager 2012 (SCVMM)
- vSphere plug-in
The vSphere plug-in allows users to manage the QNAP Turbo vNAS directly on the vSphere client, making datastore management more effective.
- Storage for Microsoft
With ODX support, the QNAP Turbo vNAS becomes a high-performance iSCSI solution under Windows Server 2012, including Hyper-V virtualized environments. QNAP storage enables full copies of virtual machines within the NAS without requiring the Windows hosts to read and write the data to highly reduce the load on Windows hosts and improving the performance of copy & move operations on Windows 2012 hosts. When providing QNAP storage to a Windows 2012 file server, the end user using a Windows 8 client workstation will also benefit from the Offloaded copy process for large file transfers.
5 Major Applications for Enterprise - Multipurpose workstation for enterprise IT environment
1. IT Management Station
Powered by Mandriva Pulse, IT Management Station is designed to simplify daily tasks and IT asset management for businesses of all sizes. Your Turbo vNAS becomes an IT system management server to help you centrally manage multi-OS & multi-site IT resources, applications and security with greater flexibility.
At the core of Pulse
New features in Mandriva Pulse 2.0
Flexible management of your IT assets
Features a desktop icon for quick self installation to facilitate access and remote control of new deployments.
2. Surveillance Station
One of the standard Turbo vNAS applications, the Surveillance Station is professional network surveillance Video Management System (VMS) that can be activated in the QTS App Center to turn the Turbo vNAS into a professional Network Video Recorder (NVR) system for real-time monitoring, recording, playback, alarm notifications, Intelligent Video Analytics (IVA), and management to safeguard your assets and property when used with supported IP cameras. The TVS-x71 series comes with 4 free camera channels, allowing users to easily build a surveillance system.
Highly-professional NVR system
3. Signage Station
The Signage Station is a free Turbo vNAS app that allows businesses to create attractive menu boards, advertising posters, and business profiles and easily publish them to monitors and tablet devices to attract more customers.
Drive business growth and increase revenue
Your content can be presented on a web browser and when on the go, and you can even show your profile, business card and product catalogs on mobile devices and share on Facebook. The Turbo vNAS with the Signage Station is an ideal tool to present creativity and drive business growth.
iArtist Lite provides a drag-and-drop interface that allows you to flexibly embed videos, marquees, pictures, and PowerPoint slides on the canvas panel. With the layered playlist and timeline features, you can freely arrange the order of media objects. iArtist Lite also offers numerous templates for various scenarios, saving you lots of time & effort. Useful widgets such as audio, clock, RSS are also available to add to the designed content.
Instantly publish and conveniently revise
With iArtist Lite you can save your designs as different projects and upload them to multiple Turbo vNAS with Signage Station installed. Whenever you want to revise the content, just open iArtist Lite to update and publish instantly. You can fully control all your content in a timely way.
Collaboration increasing efficiency
The original content can be saved on a local computer or the Turbo vNAS with the help of the connection wizard. Content saved on the Turbo vNAS is accessible for every authorized user to increase the work efficiency in projects involving multiple members.
4. Notes Station 2.0
QNAP has now leveraged its private cloud functionality to introduce Notes Station 2.0. It provides the convenience of notetaking on cloud-based services but with the privacy and security of Turbo vNAS. Users do not have to worry about risks from public storage, and are able to enjoy easier data access at all times.
Single workspace for
all notetaking activity
With its 3-level structure (Notebooks, Sections, and Notes), Notes Station 2.0 allows you to manage all your notes systematically and flexibly whether it is a note you write to yourself or for work. You can jot your valuable ideas in Notes Station 2.0 and keep them safely accessible through your own devices wherever you are.
Notes Station 2.0 is capable of advanced editing. You can style the text by changing the size, font, or color. You can also edit inserted images with the built-in photo editor to enrich your content.
Google Calendar Support
The event in the Notes Station Calendar links to the note you created it from. You can update the calendar from Notes Station 2.0 to your Google Calendar with a single click, so you will be reminded for every event.
You can encrypt your notes with high-performance AES 256-bit encryption to protect against unauthorized access.
Notes Station 2.0 can import PDF files into Notes Station 2.0, and export note files (i.e. Notes, Sections, Notebooks) to PDF files. When a notebook is exported, the sections and notes of the notebook transfer to the chapters and contents of a PDF file respectively, and vice versa for the import function.
You can quickly view the attached files in PDF, Word or PowerPoint format online with Google Docs or Office Online. Other file formats such as photos, music and videos can be played instantly with the built-in programs.
RSS feeds import
If you have subscribed to RSS feeds from news websites or blogs, you can use Notes Station 2.0 to automatically import the published contents.
Notes sharing and collaboration
Notes Station 2.0 contributes to team work and networking. You can create a link for your notes and publish them on your social networks or share them through the apps on your smartphone. Thus, you can invite other people to work on the same notes.
You can use the snapshot function to back up different revisions of your notes. Your notes can be effortlessly restored to an earlier version. The QTS Snapshot is a great tool to record the state of a note at different time points. You can create up to 1,024 snapshots manually or by schedule and it is easy to retrieve files from a specific point in time if they are broken or m i s t a k e n l y deleted.
Notes Station 2.0 comes with an import function to restore backups from Evernote. In addition, you can directly access your notebooks in Evernote to import them online to Notes Station without exporting.
5. Backup Station
Protecting against potentially disastrous data loss is of paramount importance for all sizes of businesses from micro to enterprise. QNAP Turbo vNAS offers an all-inclusive backup and recovery solution with enormous storage capacity and superior transmission speed. With the functionalities in the Backup Station, data backup and recovery is simpler and more powerful regardless of your business's disaster recovery plan.
All-inclusive data backup and disaster recovery
- PC Backup
Windows users can install the free QNAP NetBak Replicator utility to back up files from Windows PC - entire disk drives, documents, pictures, music, videos, fonts, emails, and more - to one or multiple Turbo vNAS units. With simple clicks, you can set up real-time backup, scheduled backup and auto-backup. You can set power off after the backup is finished to save energy, file filtering to exclude files not to back up, and email notification when backup is completed.
- Mac Backup
Mac users can use the Mac Time Machine to back up data to the Turbo vNAS. You only need to set the Turbo vNAS as the backup destination on the Time Machine management page, and it's done.

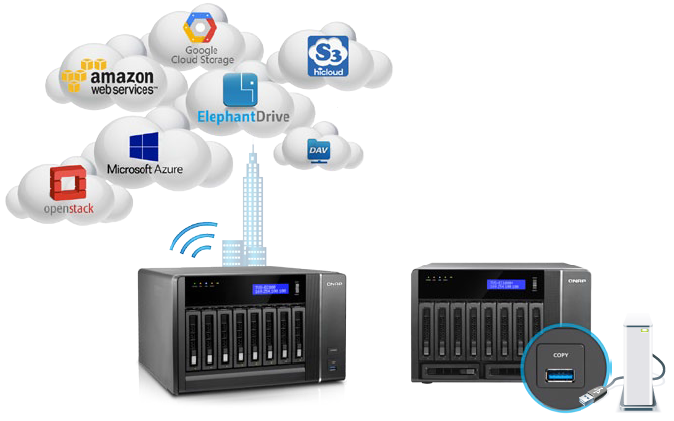

Back up data on the Turbo vNAS for disaster recovery
- Local backup to external storage devices
Connect an USB device to one of the USB ports. Log into the QTS and go to " Control Panel">"Applications">"Backup Station" and create a job with the External Backup function.
- Remote backup with RTRR/rsync services
- Use rsync protocol to execute scheduled backup to remote rsync server.
- Use RTRR (Real-Time Remote Replication) services for real time data backup to a remote Turbo vNAS or FTP server.
- Use RTRR to sync shared folders between two Turbo vNAS units.
Users can back up the data from the Turbo vNAS to online cloud storage services, such as Amazon S3, Amazon Glacier, Microsoft Azure, Google Cloud Storage*, IBM SoftLayer, HP Cloud, Rackspace, ElephantDrive, hicloud S3, and CCIS. The Turbo vNAS also supports other types of cloud backup using S3, OpenStack Swift, WebDAV, or FTP service. Furthermore, Turbo vNAS provides advanced functions such as data encryption, compression, download/ upload rate control and scheduled backup to suit your backup needs.
*Google Cloud Storage will be available soon in the App Center for download.
Media production workflow in a 10GbE network environment
Digital film and video production produces volumes of data that require high performance RAID storage with sustainable throughput to balance with the demanding output of video editing. The TVS-ECx80+ series fulfills storage and video editing needs with a high-speed 10GbE network interface. QNAP Turbo vNAS is dedicated shared storage for collaborative workflow in high-resolution multimedia projects on different file systems, achieved by supporting a variety of file sharing protocols such as NFS, AFT and SMB/CIFS. Furthermore, the scalable design of the Turbo vNAS allows for the capacity to be expanded on the fly so the Turbo vNAS can grow as the business data does.
|1. LED Indicators: Status, LAN, USB, eSATA, 10 GbE, LAN
2. HDD Status LED
3. Select Button
4. Enter Button
5. Tray Lock
6. Tray Release Button
7. One Touch Copy Button/ USB 3.0 Port
8. Power Button
9. eSATA Port x 2
|10. PCIe Slot x 1
11. USB 2.0 Port x 6
12. Password & Network Settings Reset Button
13. HDMI x 1
14. USB 3.0 Port x 2
15. K-Lock Security Slot
16. Gigabit LAN Port x 4
17. Power Connector
|CPU||Intel Xeon E3-1245 v3 3.4 GHz Quad Core Processor or above|
|Memory||System memory: 32 GB DDR3 RAM (non-ECC Memory)
Memory module pre-installed: 8 GB x4
Total memory slots: 4
|Flash Memory||512MB DOM|
|Internal Cache Port||Built-in 256GB (128GB*2) mSATA module for caching|
|Hard Drive||10 x 3.5-inch SATA 6Gbps/3Gbps hard drive or 2.5-inch SATA, 6Gbps/3Gbps hard drive SSD hard drive|
|Hard Drive Tray||10 x hot-swappable and lockable tray|
|LAN Port||2 x 10 Gigabit RJ-45 Ethernet port ( Pre-installed in PCIe slot)
4 x 1 Gigabit RJ-45 Ethernet port (on board)
|LED Indicators||Status, LAN, USB, eSATA and 10 GbE|
|USB||3x USB 3.0 port (1 front, 2 rear)
6x USB 2.0 port (rear)
Support USB printer, pen drive, USB hub, and USB UPS etc.
|Buttons||System: Power button and reset button|
|Alarm Buzzer||System warning|
|Dimensions||217.5(H) x 327(W) x 321.2(D) mm
8.56(H) x 12.8(W) x 12.65(D) inch
|Weight||Net weight (NAS only) : 12.52 kg/27.61 lb
Gross weight (with packing and accessories) : 19.75 kg/43.54 lb
|Sound Level (dB)||Standby: 30.4 dB
In operation: 31.6 dB
(with 10 x 1TB hard drives installed)
|Power Consumption (W)||Sleep mode: 68W
In Operation: 130W
(with 10 x 1TB hard drives installed)
|Relative Humidity||5~95% non-condensing, wet bulb: 27˚C.|
|Power Supply||Input: 100-240V AC, 50/60Hz
|PCIe Slot||1* PCIe Gen3 x8 ( Pre-installed with QNAP LAN-10G2T-D dual-port 10 Gigabit Network card)|
|Fan||2 x 12 cm smart cooling fan|
Access Right Management
Domain Authentication Integration
iSCSI (IP SAN)
Server Virtualization & Clustering
Storage Plug & Connect via Windows Qfinder by QNAP
Add New Features by Online Installation of over 90 Official and Community Software
(The actual available software add-ons may vary depending on the NAS platform)
* This feature may vary according to different models.
** The data encryption functions may not available in accordance with the legislative restrictions of some countries.
|Storage expansion accessories|
|10-bay RAID Expansion Enclosure|
|Dual-wide-port storage expansion card, SAS 6Gbps|
|Mini SAS external cable (SFF-8088 to SFF-8088), 1.0 m|
|Mini SAS external cable (SFF-8088 to SFF-8088), 0.5 m|
|8GB DDR3 RAM, 1600 MHz, long-DIMM|
|4GB DDR3 RAM, 1600 MHz, long-DIMM|
|mSATA Flash Module|
|Two 128GB mSATA flash modules|
|Dual-port 10 Gigabit Network Expansion Card|
|Dual-port Gigabit Network Expansion Card|
Various handy utilities are available for you to work smartly with your Turbo NAS. These utilities help increase your productivity and make it absolutely easy with connecting the Turbo NAS, setting up the system, data backup and synchronization, downloading files, and so on.
Connect and set up NAS easily
Qfinder is a utility, available for Windows, Mac, and Linux, to quickly find and access the Turbo NAS over the LAN. Install the Finder on your computer, open it, and double click your Turbo NAS name, and the login page is ready for you.
Easily access the NAS by Storage Plug & Connect
Windows version of Qfinder provides a convenient way to connect to the Turbo NAS and map a network drive or a virtual disk. By creating a shared folder on the Turbo NAS and mapping it as a network drive, you can use it as an additional drive and store files on it as it is a local drive of the computer.
NAS Connection by VPN
myQNAPcloud Connect helps you access the published services of the Turbo NAS quickly and securely on the Internet. myQNAPcloud Connect application is designed for Windows PC users. By installing the myQNAPcloud Connect, you will be able to connect to the Turbo NAS and easily manage files by drag-and-drop within the Windows Explorer.
Synchronize files anytime, anywhere
Qsync is a useful tool to synchronize files in multiple computers. It creates a specific “Qsync folder” in your devices that you can simply drop files in, and synchronizes the files to all your devices linked to the Turbo NAS.
Sync in multiple ways
Whenever you add, edit, delete or rename a file on one computer, the change applies to all others linked with the Turbo NAS, so you have exactly identical contents on all your devices.
It allows you to remove files on one computer without affecting the copies stored on others that are linked with the Turbo NAS. However, when someone updates the files you deleted from another computer, you can still retrieve them in the Qsync folder.
Advanced Selective Sync
With both Full Sync or Smart Sync options, you can choose to only sync specific sub-folders within the Qsync folder, useful if your computers have limited storage.
Share files and folders easily
Quickly share files with download links
You can create download links to share files with people, even if they don’t have an account on the Turbo NAS. This greatly reduces the time in creating user account and password for users.
Share folders for collaboration
Your life is connected with different groups of people. You can create sub-folders within the Qsync folder, and share each with different groups of Turbo NAS users as a file exchange center. Everyone in the same sub-folder is always kept up-to-date with the latest version of the files.
QNAP NetBak Replicator
Backup data on PC
The QNAP NetBak Replicator, provided with any Turbo NAS unit free of charge, helps you easily back up files from Windows PC - entire disk drives, documents, pictures, music, videos, fonts, emails, and more - to the Turbo NAS. The operation is very simple. You can do the backup task in just a few clicks using NetBak Replicator by the setting of real-time synchronization, scheduled backup and auto-backup from multiple PCs to the Turbo NAS.
NetBak Replicator also supports backing up to a remote server via FTP and WebDAV through the Internet. Imagine that you can backup new photos whenever on vacation. Even you are away from home, the convenient backup supports your memories.
Download Station monitor widget
QGet is a powerful utility for download management. The software is available for Windows and Mac computers, allowing the management of BT, HTTP, and FTP download tasks of Download Station on multiple Turbo NAS servers.
QGet enables you to add, remove, or watch your BT download jobs from LAN or WAN. You can manage your download tasks in school or at work. QGet supports intuitive drag and drop of torrent files, HTTP or FTP URL to the software interface for convenient adding of download tasks.
vsphere Client plug-in
Manage QNAP NAS within vSphere Client
The Turbo NAS supports vSphere Client Plug-in that allows managing VMware datastores on the Turbo NAS directly from the vSphere client console. In a large-scale server virtualization environment, management is centralized and straightforward. Administrators can easily control the status of the Turbo NAS and datastores and create additional datastores to multiple ESXi hosts in just a few clicks.
Note: The TS-x51 series doesn’t support vSphere Client plug-in.
Take screenshots, easy and fast

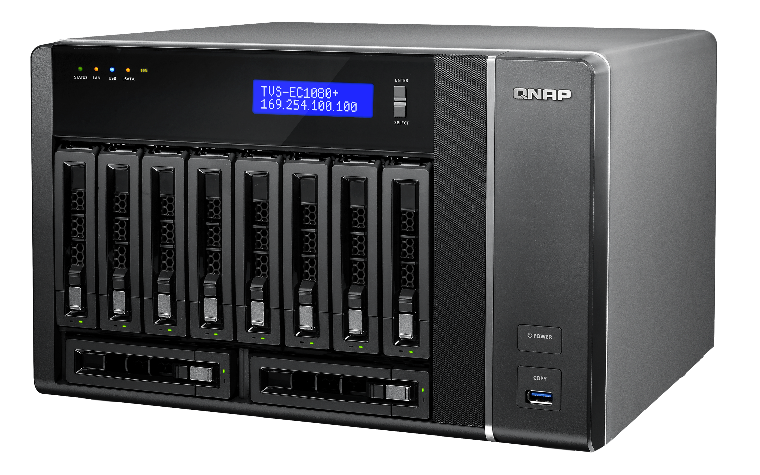

||Left Angle View
|Right Angle View

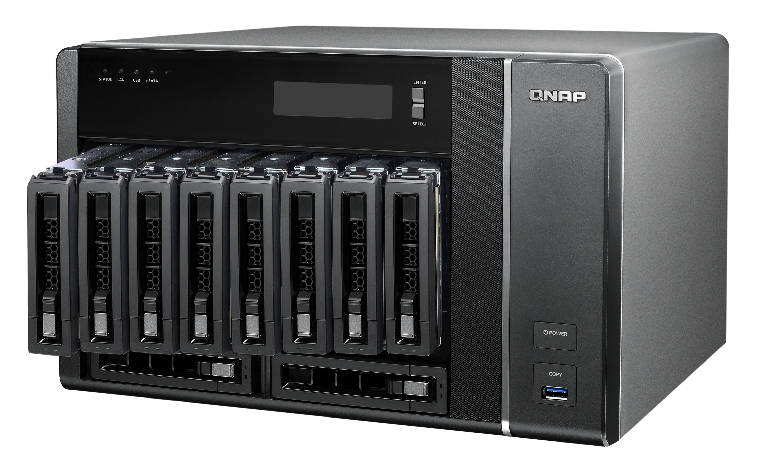

||Drive Pull-out View
Download the QNAP TVS-x80+ Series Datasheet (PDF).
- שימו לב: כל המחירים באתר כוללים מע"מ.
- החיוב יבוצע על פי שער "העברות והמחאות מכירה" של המטבע (דולר אמריקאי) ביום אישור ההזמנה.
- מחירי המוצרים וזמינותם כפופים לשינויים ללא הודעה מוקדמת.
המחיר שלנו: הצעת מחיר
